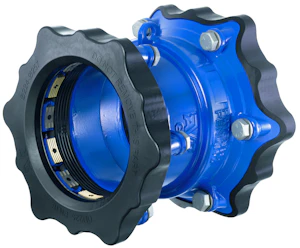

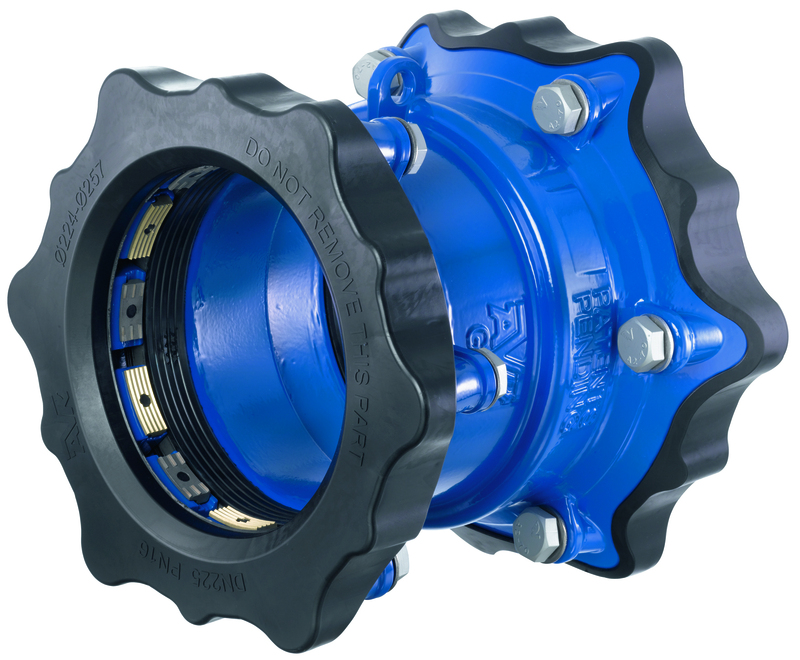

COUPLING SUPAMAXI 82-106MM X 104-133MM PN16
Product code
1965431
AVK's Supa Maxi™ range sets a new standard for tensile-resistant couplings. The patented Supa Maxi™ seal support system, combined with the coupling's unique design, ensures optimal sealing and tensile resistance on all pipe materials. The couplings are user-friendly and easy to install. Features include +/-4 degree angular misalignment, protective plug, lifting hook, center tightening, no need for re-tightening due to material and structure, and installation temperature down to -30 degrees Celsius. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Nominal diameter DNDN 80
Fitting typeReducer joint
Working pressurePN 16
Multi tolerancetrue
Pull-out resistancetrue
Connection typeSocket outlet
For ground heat systemsfalse
Material connection 1Cast iron
Material connection 2Cast iron
ShapeStraight
Reducingyes
Nominal diameter connection 1DN 80
Nominal diameter connection 2DN 100
Main colour fittingBlue
Material sealingEthylene-propylene diene monomer rubber (EPDM)
Product codes
SAPALR014
HPAC1965431
PLC1965431
GTIN/EAN5706231830649
Manufacturer part number632106133006
Vendor material number632106133006
Basic information
Package measurements (L x W x H)265 x 265 x 350 mm
Package volume24.579 l
Package weight11 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC40141720
BrandAVK
VendorAVK FINLAND OY
