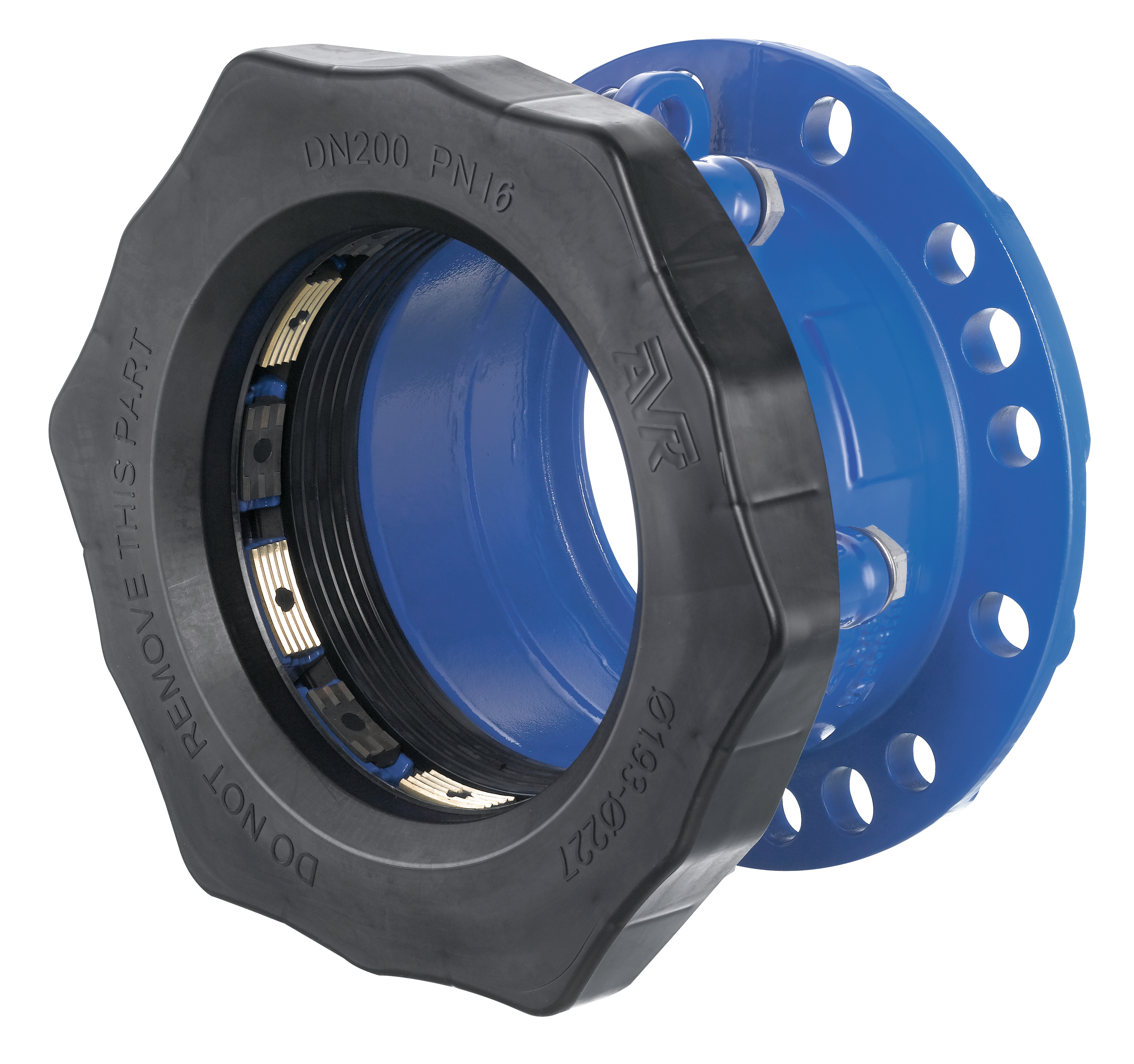

FLANGED ADAPTOR AVK DN200/193-227mm SUPA MAXI

Product code
1965466
AVK's Supa Maxi™ range sets a new standard for tensile-resistant couplings. The patented Supa Maxi™ seal support system, combined with the coupling's unique design, ensures optimal sealing and tensile resistance on all pipe materials. The couplings are user-friendly and easy to install. Features include +/-4 degree angular misalignment, protective plug, lifting hook, center tightening, no need for re-tightening due to material and structure, and installation temperature down to -30 degrees Celsius. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fitting with 2 connections (EC003024)
Nominal diameter DNDN 200
For pipe materialSteel
Fitting typeOther
Working pressurePN 16
Multi tolerancetrue
Pull-out resistancetrue
Connection typeFlanged connection
For ground heat systemsfalse
Material connection 1Cast iron
Material connection 2Cast iron
ShapeStraight
Nominal diameter connection 1DN 200
Connection 1Flange
Connection 2Compression ring
Main colour fittingBlue

Product codes

SAPAJK356
HPAC1965466
PLC1965466
GTIN/EAN5706231784430
Manufacturer part number63322700006
Vendor material number63322700006

Basic information

Package measurements (L x W x H)365 x 395 x 245 mm
Package volume35.323 l
Package weight27 kg
Base uniteach
Package units1 / 6
Package contents
UNSPSC40175305
BrandAVK
VendorAVK FINLAND OY
