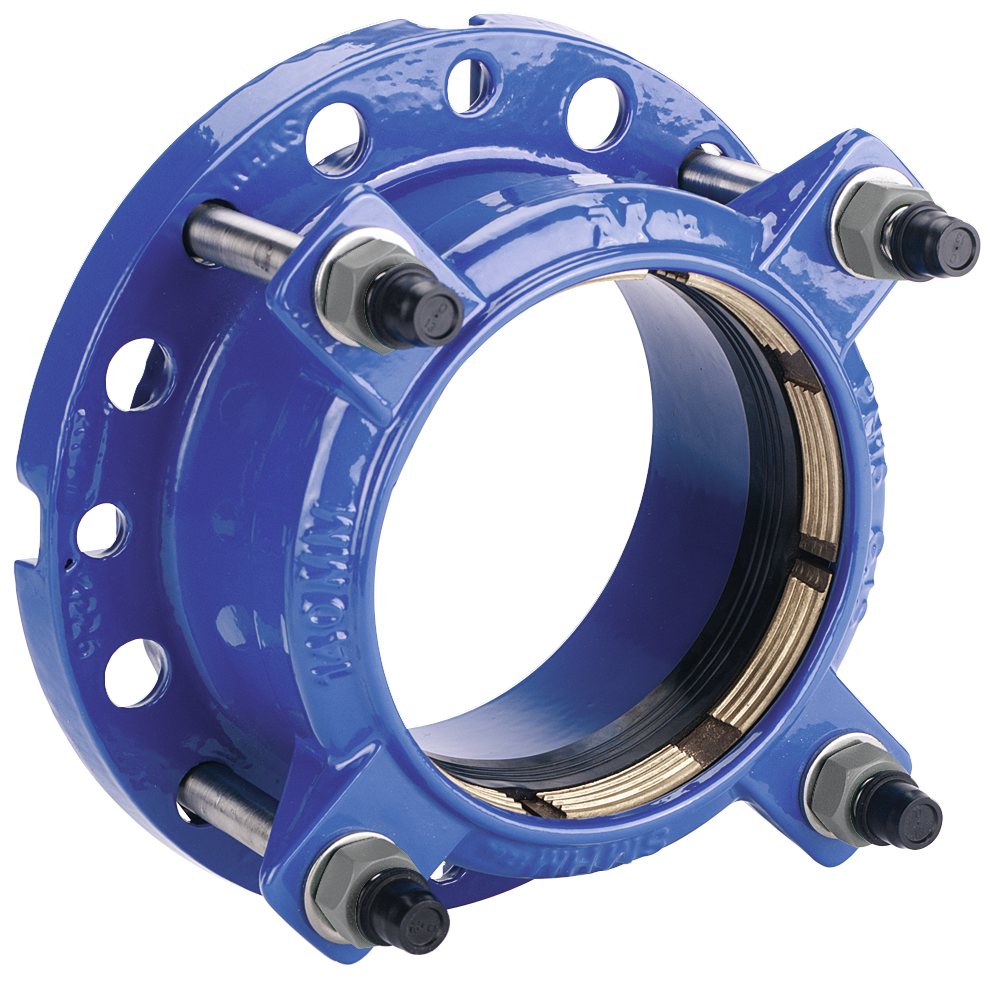

FLANGED ADAPTOR AVK DN65/75 SUPA PLUS PN10/16
Product code
1972545
AVK Supa Plus™ is a range of tensile-resistant couplings, socket fittings, and end caps for PE and uPVC pipes. Supa Plus™ couplings offer excellent flexibility and are easy to install thanks to the compression seal. The seal allows for a ±3.5° angular deviation, and pipe installation is easy even in large sizes. External M16 bolts are made of stainless steel coated with an anti-friction agent, and the high-quality coating provides durable corrosion protection. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Nominal diameter DNDN 65
For pipe materialPlastic
Fitting typeOther
Working pressurePN 10
Multi tolerancefalse
Pull-out resistancetrue
Connection typeFlanged connection
For pipe diameter75 mm
For ground heat systemsfalse
Product codes
SAPACN792
HPAC1972545
PLC1972545
GTIN/EAN5706231345440
Manufacturer part number623100756141001
Vendor material number623100756141001
Basic information
Package measurements (L x W x H)130 x 190 x 190 mm
Package volume4.693 l
Package weight4.28 kg
Base uniteach
Package units1 / 35
Package contents–
UNSPSC40172608
BrandAVK
VendorAVK FINLAND OY
