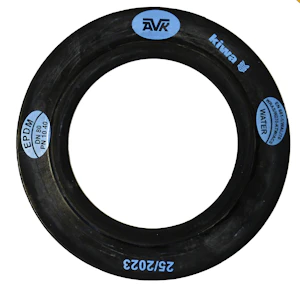

FLANGED GASKET AVK DN250 PN16 EPDM KGS GII
Product code
3261527
AVK flange gaskets with a steel inner ring are suitable for flanges made of steel, stainless steel, glass fiber-reinforced plastic, PP, PVC, and PE, as well as coated flanges. Flange gaskets are available in EPDM rubber for water and wastewater applications and in NBR rubber for gas applications. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Rubber flange gasket (DIN) (EC010676)
MaterialEthylene-propylene diene monomer rubber (EPDM)
Shore hardness70
ColourBlack
Material inlaySteel
Nominal diameter of flangeDN 250
Inner diameter273 mm
Outer diameter329 mm
Thickness4 mm
Product codes
SAPCIO287
HPAC3261527
PLC3261527
GTIN/EAN5715330054238
Manufacturer part number79250425
Vendor material number79250425
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.065 l
Package weight0.03 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC31171606
BrandAVK
VendorAVK FINLAND OY
