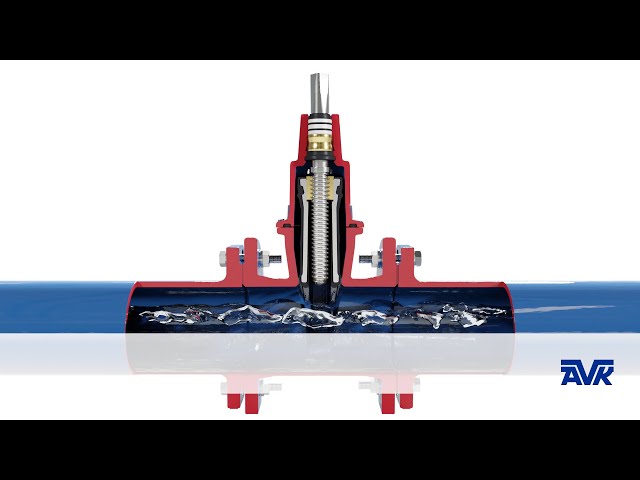

FLANGED GAT VALVE AVK DN250 PN10

Gate valve for drinking water and neutral fluids, up to 70 °C. Every detail of AVK's gate valves is designed with safety in mind. The slider is fully vulcanized with AVK's own EPDM compound approved for drinking water. The slider's robust construction, the rubber's ability to return to its original shape, and the double vulcanization process make the slider extremely durable. Thanks to the triple sealing system, durable stem, and complete corrosion protection, the valve operates with exceptional reliability.

Features

• Fixed, integrated slider nut prevents vibration and ensures long service life
• Fully vulcanized rubber slider made of EPDM rubber approved for drinking water
• Large conical opening in the slider facilitates cleaning and prevents sludge buildup
• Fixed slider stop ring in the stem, rolled threads, and stainless steel material
• Round seal and bearing design keep the stem perfectly aligned and ensure low operating torque
• Triple stem sealing system with NBR upper seal, polyamide bearing with four NBR O-rings, and EPDM sealing washer
• Round EPDM rubber cover seal fixed in groove
• Cover bolts made of stainless steel are embedded and protected by sealing compound, surrounded by cover seal
• Epoxy coated in accordance with DIN3476 Part 1 and EN14901, GSK approved
• Full bore
• Low operating torque.

This product description is an automated translation of the original Finnish description.
