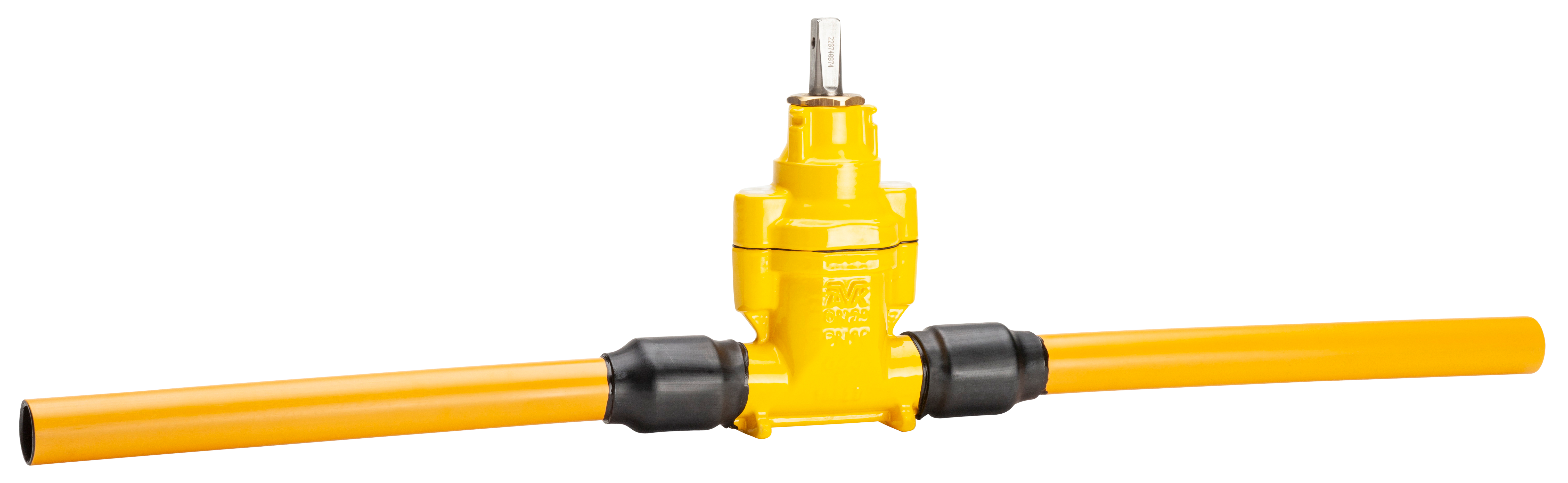

GAS VALVE AVK DN50/63mm PN10 PE-ENDS
Product code
3813750
Every detail of AVK's gate valves is designed with safety in mind, and all critical valve components are traceable. The seal is fully vulcanized using AVK's own oil- and gas-resistant NBR rubber compound. The seal's robust construction, the rubber's ability to return to its original shape, and the double vulcanization process make the seal extremely durable. Thanks to the valve's three-part seal system, which is replaceable under pressure, the durable stem, and complete corrosion protection, the valve operates with exceptional reliability. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Gas valve (EC011015)
Housing materialCast iron
Housing material qualityCast iron EN-GJS-400-15 (GGG 40)
Nominal diameter connection 1DN 50
Outer pipe diameter connection 163 mm
Connection 1Plastic welded end
Nominal diameter connection 2DN 50
Outer pipe diameter connection 263 mm
Connection 2Plastic welded end
Max. medium temperature (continuous)20 °C
Max. operating pressure at max. medium temperature10 bar
Product codes
SAPAST011
HPAC3813750
PLC3813750
GTIN/EAN5706231190477
Manufacturer part number3606390703037
Vendor material number3606390703037
Basic information
Package measurements (L x W x H)900 x 100 x 240 mm
Package volume21.6 l
Package weight8 kg
Base uniteach
Package units1
Package contents–
UNSPSC40141616
BrandAVK
VendorAVK FINLAND OY
