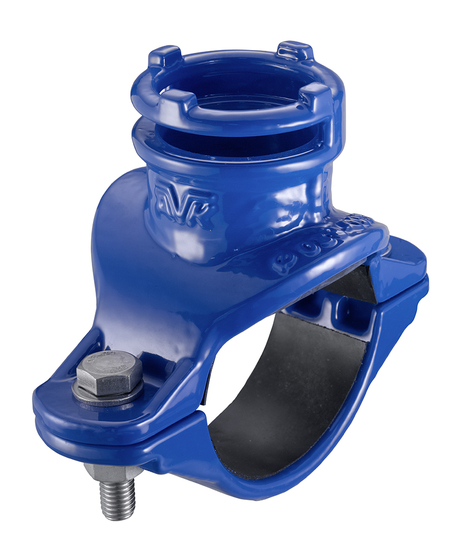

SADDLE AVK 114-119mm DI/STEEL SUPA LOCK
Product code
0115361
SUPA LOCK? - Threadless Connection Solution
Completely corrosion-free
The traditional saddle connection solution using threaded fittings is time-consuming and always leaves part of the thread uncoated. This area is immediately susceptible to corrosion and may cause leaks in the connection shortly after installation. SUPA LOCK? enables safe installation through an innovative locking solution.
An innovative connection system designed and tested for northern conditions ensures excellent protection against corrosion and leaks, significantly extending the service life of the connection compared to traditional threaded connections. The press-fit connection cannot be accidentally opened, ensuring safety is integrated into the design.
The product range includes a shut-off valve, saddles for plastic and cast iron pipes, and fittings. All cast iron components feature a GSK-standard coating that meets the most demanding industry requirements. Brass components are made of zinc-resistant brass and comply with industry standards and requirements for material and manufacturing. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Broaching saddle (EC011014)
MaterialCast iron
Material inlayEthylene-propylene diene monomer rubber (EPDM)
Suitable for pipe diameterDN 32
Suitable for outer pipe diameter119 - 119 mm
Mounted on pipeClamp connection
ConnectionOther
ColourBlue
Product codes
SAPCCW627
HPAC0115361
PLC0115361
GTIN/EAN5712206717990
Manufacturer part number10011914320464
Vendor material number10011914320464
Basic information
Package measurements (L x W x H)225 x 110 x 150 mm
Package volume3.713 l
Package weight1.9 kg
Base uniteach
Package units1
Package contents–
UNSPSC40141720
BrandAVK
VendorAVK FINLAND OY
