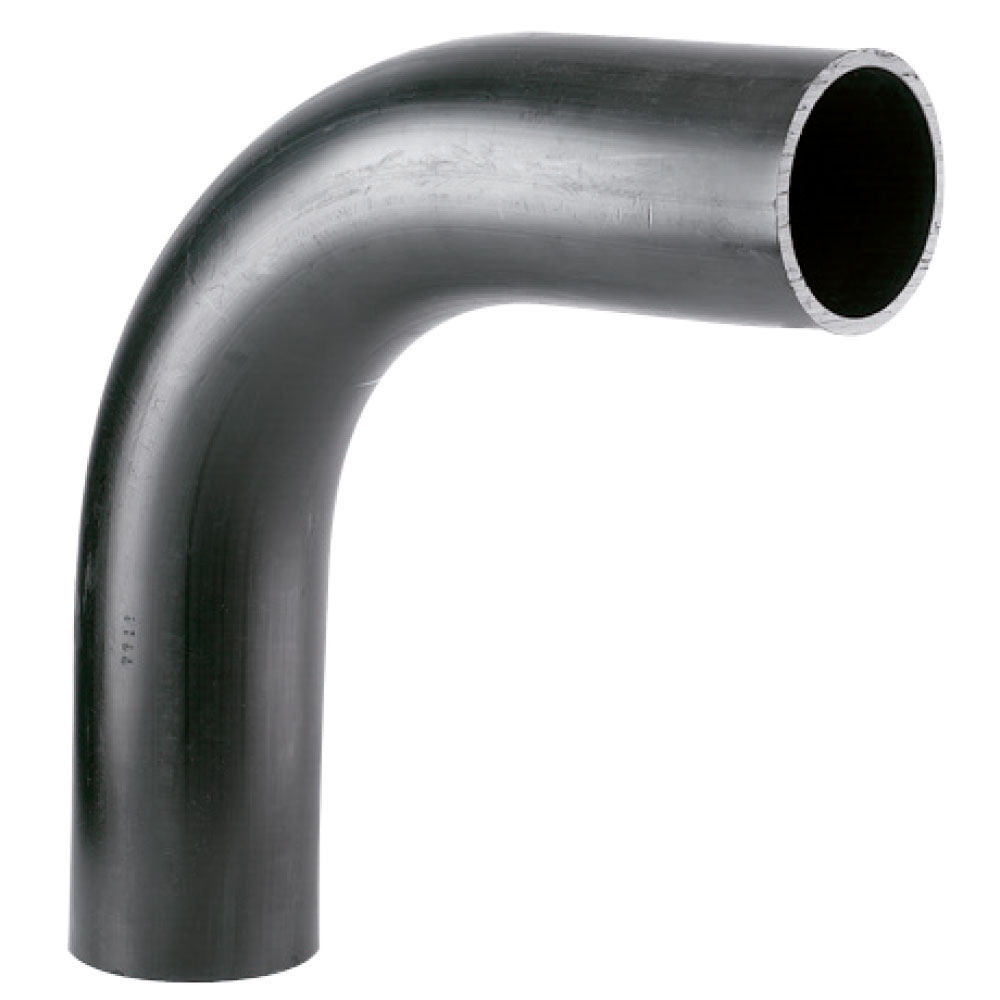

SEAMLESS BEND 100 225x90 PN10 PE100 SDR17
Product code
1836885
Electrically weldable 90° pressure pipe bend, PE100, SDR17, R=338mm. Cold part. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polyethylene (PE)
Material quality connection 1PE-100
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Polyethylene (PE)
Material quality connection 2PE-100
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeBend
Model1-part
Bend angle90 °
Reducingno
Eccentricno
Outer pipe diameter connection 1225 mm
Connection 1Welding connection
Product codes
SAPCXY345
HPAC1836885
PLC1836885
GTIN/EAN5055883633970
Manufacturer part numberLRBHK225X90V
Vendor material numberLRBHK225X90V
Basic information
Package measurements (L x W x H)590 x 590 x 225 mm
Package volume78.322 l
Package weight8.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC40142017
BrandAVK
VendorAVK FINLAND OY
