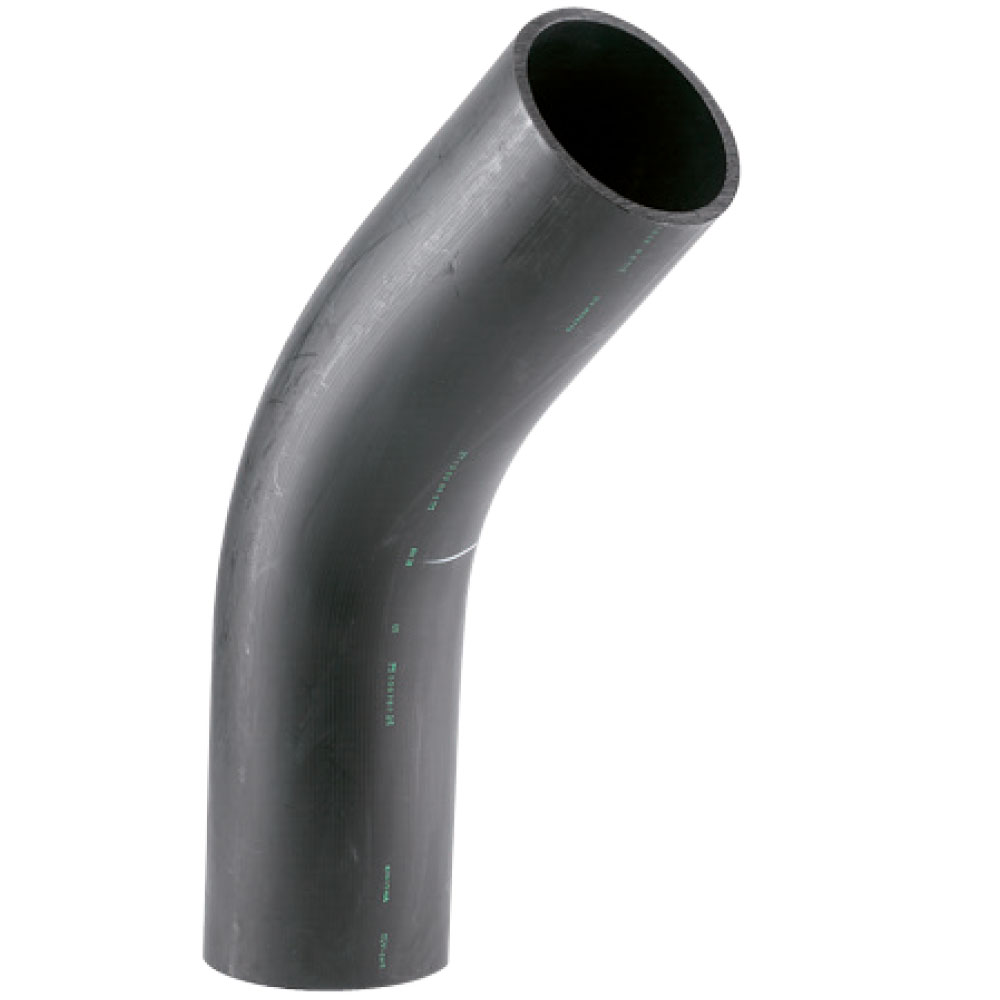

SEAMLESS BEND 45 180x45 PN10 PE100 SDR17
Product code
1836845
Electrically weldable 45° pressure pipe bend, PE100, SDR17, R=270mm. Cold section. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polyethylene (PE)
Material quality connection 1PE-100
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Polyethylene (PE)
Material quality connection 2PE-100
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeBend
Model1-part
Bend angle45 °
Reducingno
Eccentricno
Outer pipe diameter connection 1180 mm
Connection 1Welding connection
Product codes
SAPCXY381
HPAC1836845
PLC1836845
GTIN/EAN5055883632997
Manufacturer part numberLRBHK180X45V
Vendor material numberLRBHK180X45V
Basic information
Package measurements (L x W x H)700 x 250 x 180 mm
Package volume31.5 l
Package weight3.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC40142017
BrandAVK
VendorAVK FINLAND OY
