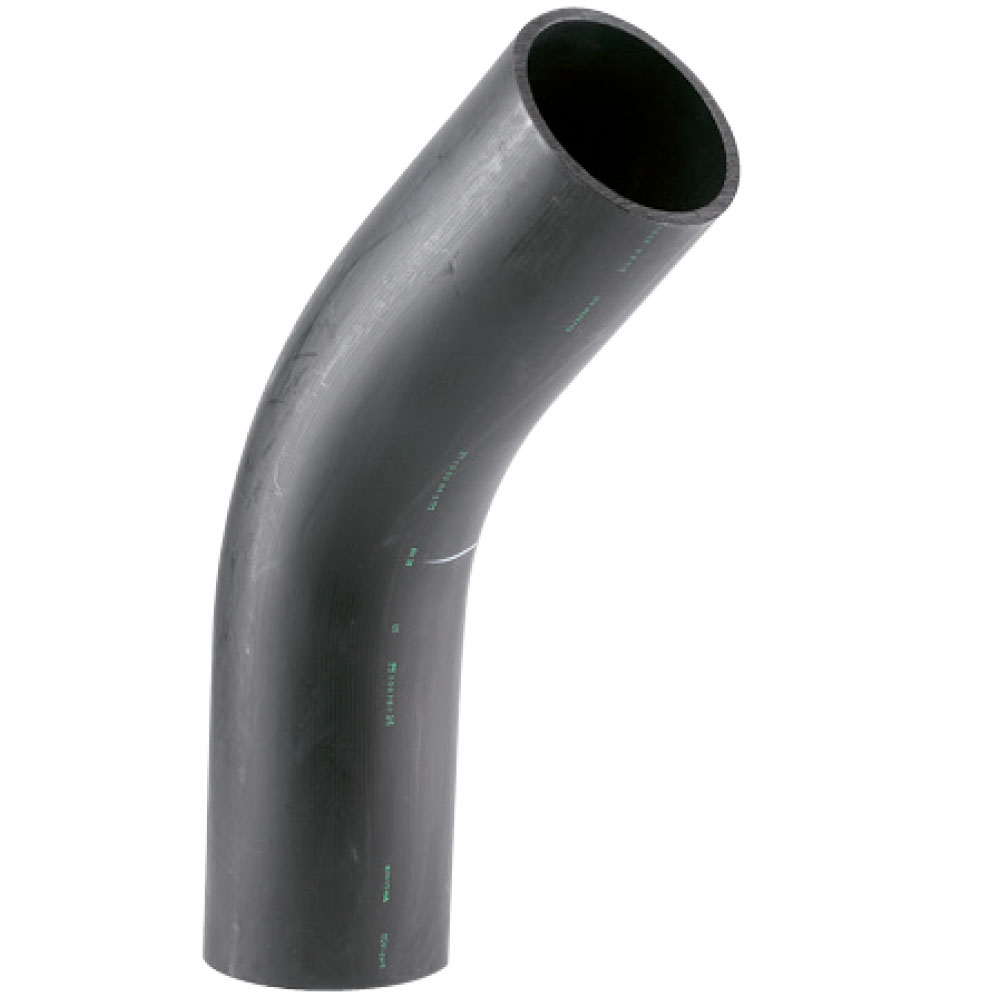

SEAMLESS BEND 45 630x45 PN10 PE100 SDR17
Product code
1836856
Electrically weldable 45° pressure pipe bend, PE100, SDR17, R=945mm. Cold part. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polyethylene (PE)
Material quality connection 1PE-100
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Polyethylene (PE)
Material quality connection 2PE-100
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeBend
Model1-part
Bend angle45 °
Reducingno
Eccentricno
Outer pipe diameter connection 1630 mm
Connection 1Welding connection
Product codes
SAPCXY392
HPAC1836856
PLC1836856
GTIN/EAN5055883633109
Manufacturer part numberLRBHK630X45V
Vendor material numberLRBHK630X45V
Basic information
Package measurements (L x W x H)1740 x 615 x 630 mm
Package volume674.163 l
Package weight130.9 kg
Base uniteach
Package units1
Package contents–
UNSPSC40142017
BrandAVK
VendorAVK FINLAND OY
