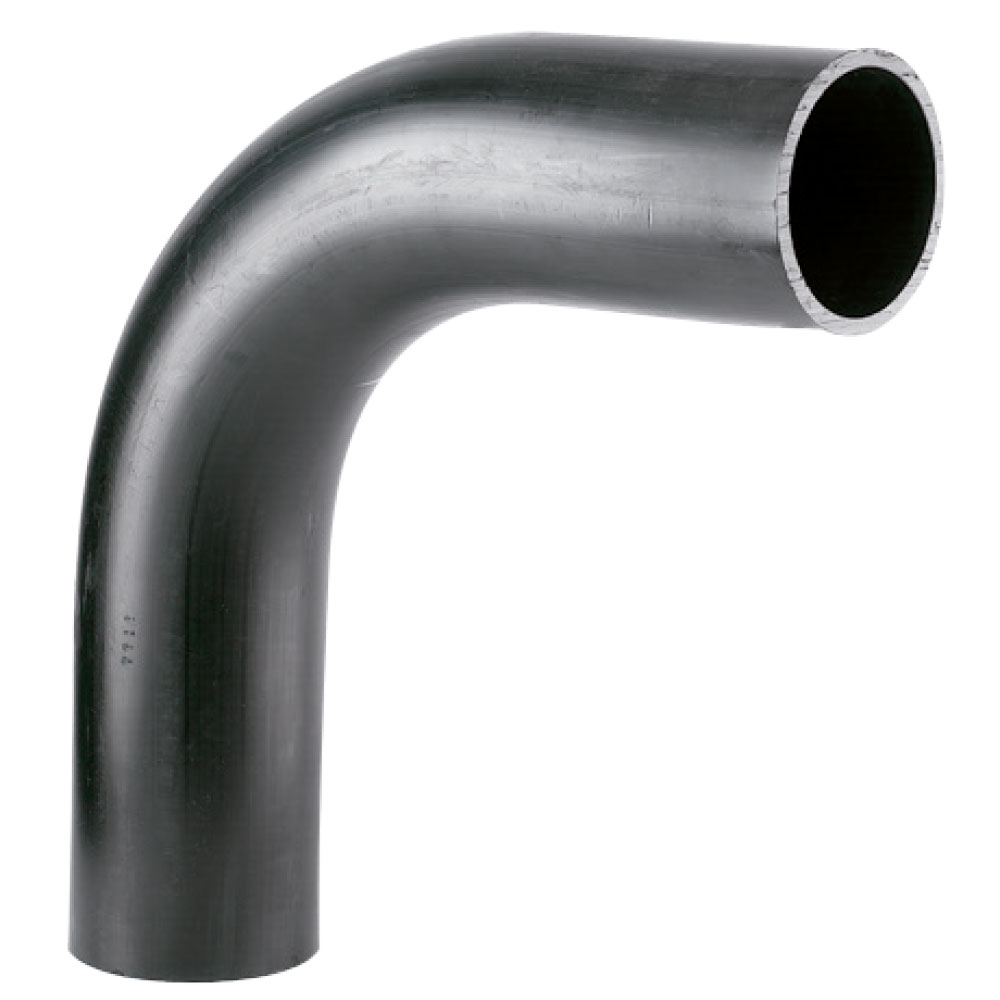

SEAMLESS BEND 90 140x90 PN16 PE100 SDR11
Product code
1837603
Electrically weldable 90° pressure pipe bend, PE100, SDR11, R=210mm. Cold section. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polyethylene (PE)
Material quality connection 1PE-100
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Polyethylene (PE)
Material quality connection 2PE-100
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeBend
Model1-part
Bend angle90 °
Reducingno
Eccentricno
Outer pipe diameter connection 1140 mm
Connection 1Welding connection
Product codes
SAPCXY363
HPAC1837603
PLC1837603
GTIN/EAN5055883633703
Manufacturer part numberLRBHK140X90N
Vendor material numberLRBHK140X90N
Basic information
Package measurements (L x W x H)440 x 440 x 140 mm
Package volume27.104 l
Package weight3.9 kg
Base uniteach
Package units1
Package contents–
UNSPSC40142017
BrandAVK
VendorAVK FINLAND OY
