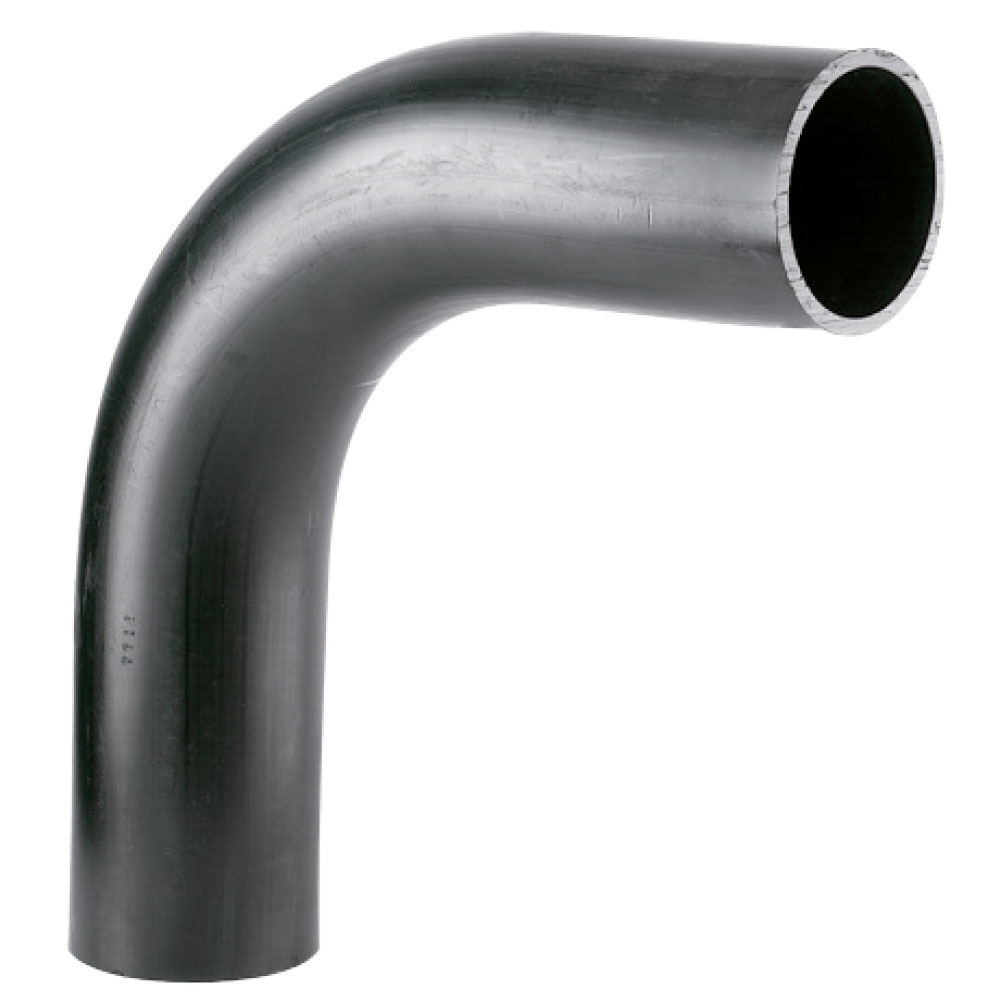

SEAMLESS BEND 90 280x90 PN16 PE100 SDR11
Product code
1837609
Electrically weldable 90° pressure pipe bend, PE100, SDR11, R=420mm. Cold section. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polyethylene (PE)
Material quality connection 1PE-100
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Polyethylene (PE)
Material quality connection 2PE-100
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeBend
Model1-part
Bend angle90 °
Reducingno
Eccentricno
Outer pipe diameter connection 1280 mm
Connection 1Welding connection
Product codes
SAPCXY369
HPAC1837609
PLC1837609
GTIN/EAN5055883633765
Manufacturer part numberLRBHK280X90N
Vendor material numberLRBHK280X90N
Basic information
Package measurements (L x W x H)750 x 750 x 280 mm
Package volume157.5 l
Package weight25.7 kg
Base uniteach
Package units1
Package contents–
UNSPSC40142017
BrandAVK
VendorAVK FINLAND OY
