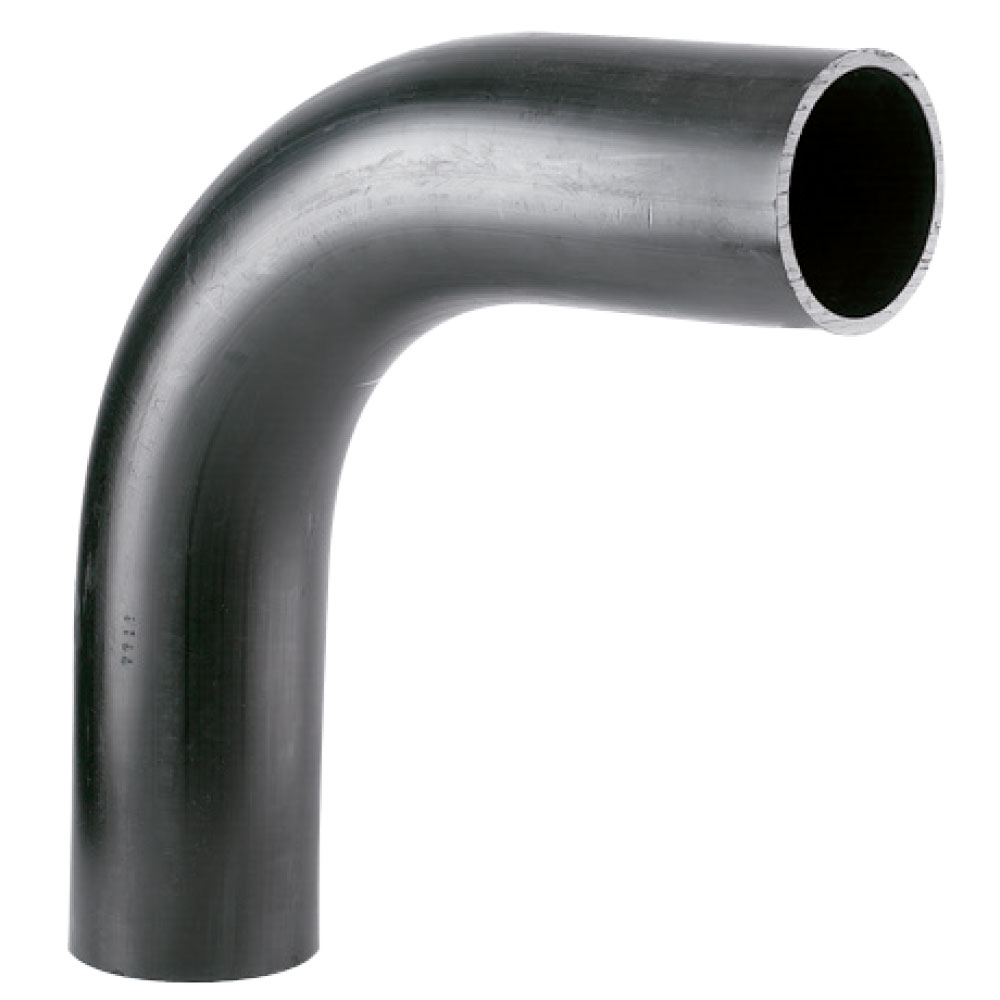

SEAMLESS BEND 94 110x90 PN10 PE100 SDR17
Product code
1836879
Electrically weldable 90° pressure pipe bend, PE100, SDR17, R=165mm. Cold part. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polyethylene (PE)
Material quality connection 1PE-100
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Polyethylene (PE)
Material quality connection 2PE-100
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeBend
Model1-part
Bend angle90 °
Reducingno
Eccentricno
Outer pipe diameter connection 1110 mm
Connection 1Welding connection
Product codes
SAPCXY339
HPAC1836879
PLC1836879
GTIN/EAN5055883633918
Manufacturer part numberLRBHK110X90V
Vendor material numberLRBHK110X90V
Basic information
Package measurements (L x W x H)380 x 380 x 110 mm
Package volume15.884 l
Package weight1.4 kg
Base uniteach
Package units1
Package contents–
UNSPSC40142017
BrandAVK
VendorAVK FINLAND OY
