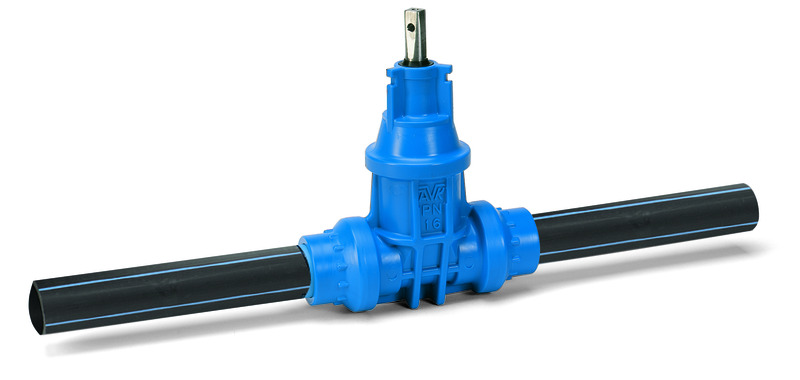

SERVICE VALVE AVK 50 PLASTIC 16-050-80026
Product code
3833566
Every detail of AVK's flexible-sealed gate valves is designed with safety in mind. The gate is vulcanized using AVK's own EPDM rubber compound approved for drinking water. The gate's robust construction, the rubber's ability to return to its original shape, and the double vulcanization process make the gate extremely durable. Thanks to corrosion-resistant materials and a robust stem, the valve operates with exceptional reliability. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Underground service valve (EC003268)
ModelStraight
MaterialPlastic
Material qualityPolyoxymethylene (POM)
Nominal diameter connection 1DN 40
Outer pipe diameter connection 150 mm
Connection 1Plastic welded end
Nominal diameter connection 2DN 40
Outer pipe diameter connection 250 mm
Connection 2Plastic welded end
Article compression classPN 16
SealingEthylene-propylene diene monomer rubber (EPDM)
Material spindleStainless steel 304 (1.4301)
Product codes
SAPANU201
HPAC3833566
PLC3833566
GTIN/EAN5706231146122
Manufacturer part number1605080026
Vendor material number1605080026
Basic information
Package measurements (L x W x H)610 x 110 x 260 mm
Package volume17.446 l
Package weight2.72 kg
Base uniteach
Package units1 / 16
Package contents–
UNSPSC40141616
BrandAVK
VendorAVK FINLAND OY
