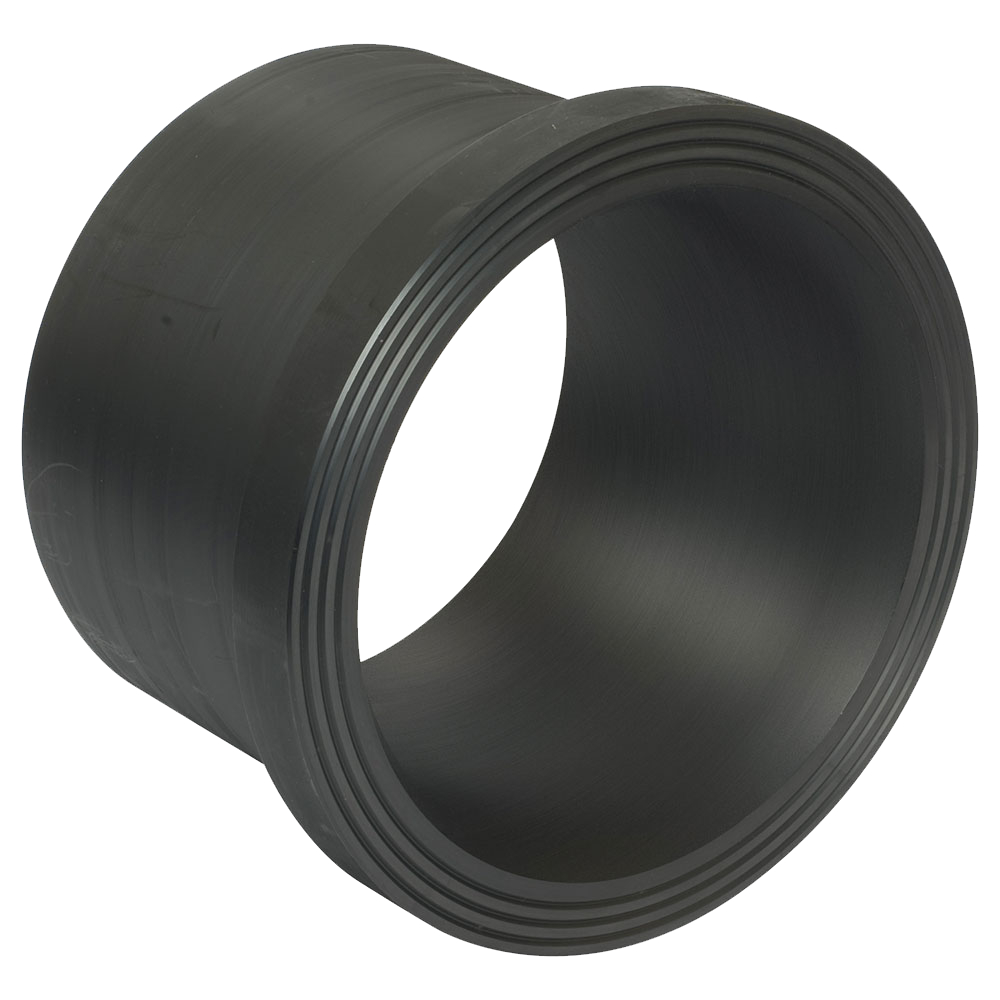

STUB FLANGE ADAPTOR D140/DN125, PN10, SDR17
Product code
1836738
Electrically weldable collar. Long style. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polyethylene (PE)
Material quality connection 1PE-100
Material connection 2Polyethylene (PE)
Material quality connection 2PE-100
ShapeStraight
Outer pipe diameter connection 1140 mm
Connection 1Welding connection
Nominal diameter connection 2DN 125
Connection 2Flange
Max. operating pressure at 20 °C10 bar
Standard Dimension Ratio (SDR)17
Product codes
SAPCXX781
HPAC1836738
PLC1836738
GTIN/EAN5055883609517
Manufacturer part numberSFHK140V
Vendor material numberSFHK140V
Basic information
Package measurements (L x W x H)188 x 188 x 188 mm
Package volume6.645 l
Package weight1.04 kg
Base uniteach
Package units1 / 12
Package contents–
UNSPSC31163210
BrandAVK
VendorAVK FINLAND OY
