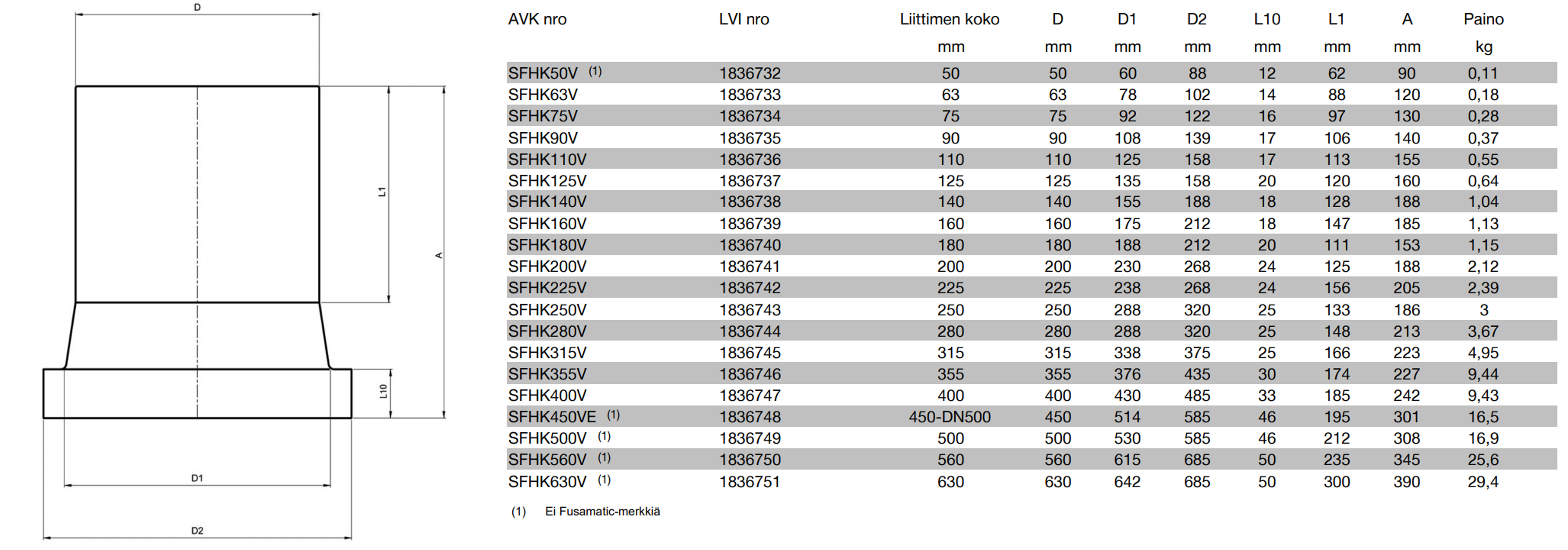

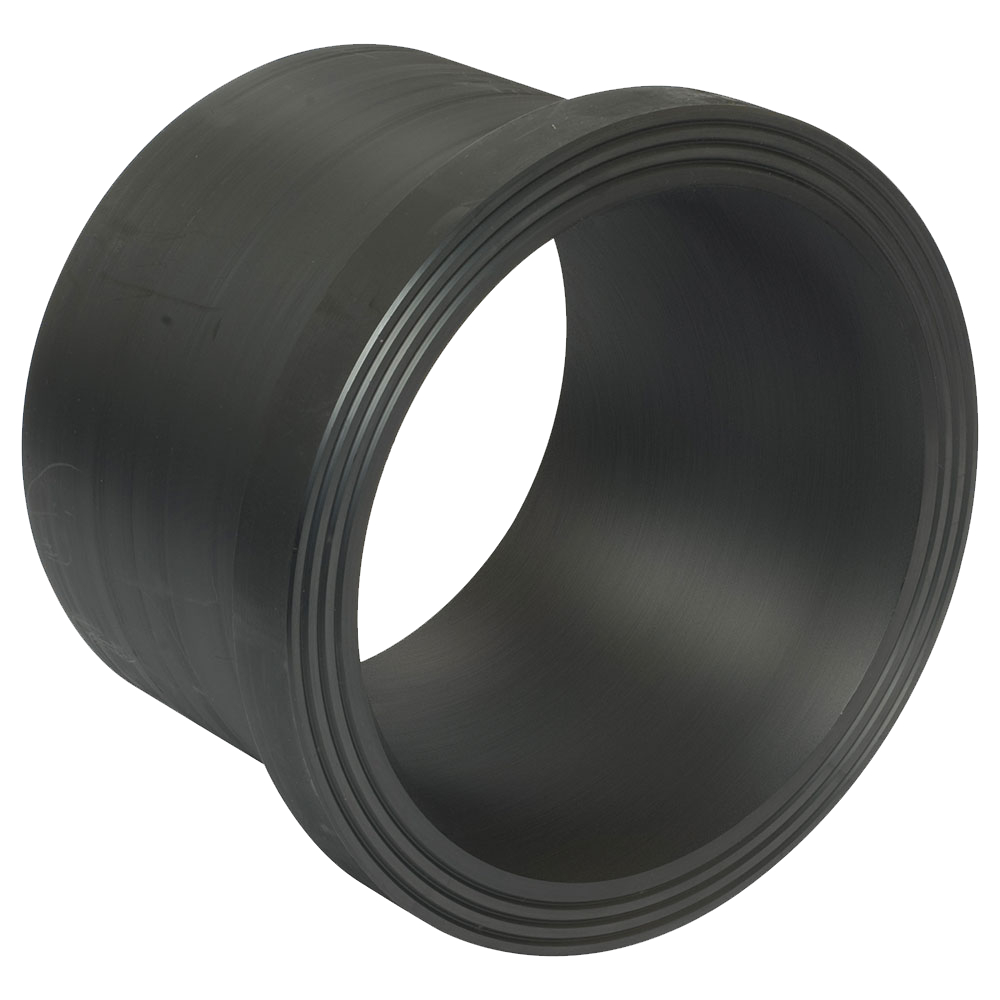

STUB FLANGE ADAPTOR D560/DN600, PN10, SDR17
Product code
1836750
Electrically weldable collar, long model
Features- collar for gas, water, mining and irrigation applications, manufactured from black PE100 (polyethylene) primary virgin material
- SDR 17
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polyethylene (PE)
Material quality connection 1PE-100
Material connection 2Polyethylene (PE)
Material quality connection 2PE-100
ShapeStraight
Outer pipe diameter connection 1560 mm
Connection 1Welding connection
Nominal diameter connection 2DN 600
Connection 2Flange
Max. operating pressure at 20 °C10 bar
Standard Dimension Ratio (SDR)17
Product codes
SAPCXX793
HPAC1836750
PLC1836750
GTIN/EAN5055883609630
Manufacturer part numberSFHK560V
Vendor material numberSFHK560V
Basic information
Package measurements (L x W x H)373 x 685 x 685 mm
Package volume175.021 l
Package weight24.17 kg
Base uniteach
Package units1
Package contents–
UNSPSC31163210
BrandAVK
VendorAVK FINLAND OY
