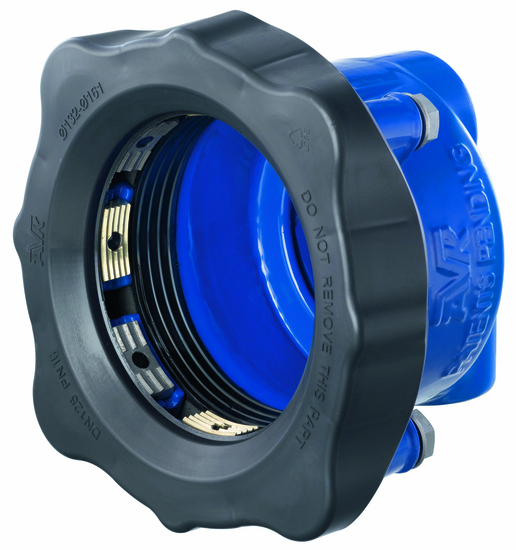

END CAP 69-91MM, 2" SUPA MAXI
Product code
1965443
AVK's Supa Maxi™ range sets a new standard for tensile-resistant couplings. The patented Supa Maxi™ seal support system, combined with the coupling's unique design, ensures optimal sealing and tensile resistance on all pipe materials. The couplings are user-friendly and easy to install. Features include +/-4 degree angular misalignment, protective plug, lifting hook, center tightening, no need for re-tightening due to material and structure, and installation temperature down to -30 degrees Celsius. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 1 connection (EC003023)
Nominal diameter DNDN 65
Fitting typeOther
Working pressurePN 16
Multi tolerancetrue
Pull-out resistancetrue
Connection typeSocket outlet
For ground heat systemsfalse
Material connection 1Cast iron
Connection 1Compression ring
Max. operating pressure at 20 °C16 bar
Material sealingEthylene-propylene diene monomer rubber (EPDM)
Main colour fittingBlue
With sealing rings/gasketsyes
Product codes
SAPALQ991
HPAC1965443
PLC1965443
GTIN/EAN5706231850821
Manufacturer part number63409100036
Vendor material number63409100036
Basic information
Package measurements (L x W x H)200 x 200 x 225 mm
Package volume9 l
Package weight5.5 kg
Base uniteach
Package units1 / 24
Package contents–
UNSPSC40141720
BrandAVK
VendorAVK FINLAND OY
