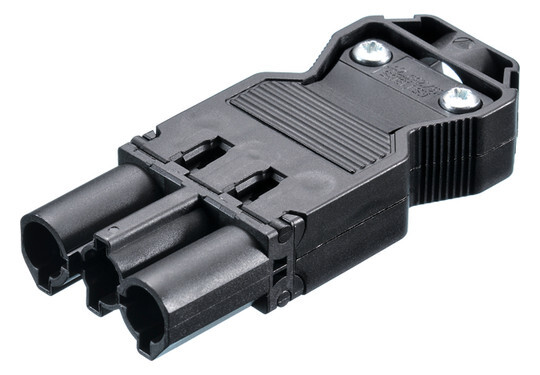

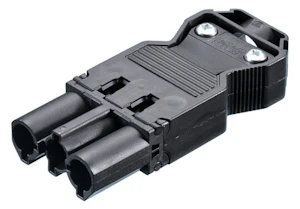

PLUG CONNECTOR WIELAND GST1813 MALE
Product code
1911200
Wieland GST18i3 male connector. For cable cross-sections of 0.75mm² - 2.5mm². Both solid and flexible conductors can be connected without splices. For cable diameters of 6.5mm - 10.5mm.
The corresponding Wieland GST18i3 female connector is available under its own electrical number 1911201. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Plug-in connector for plug-in building installation (EC002560)
ModelPlug
Rated voltage250 V
Rated current20 A
Number of poles3
Degree of protection (IP)IP20
Connection typeScrew connection
Cable diameter105 - 105 mm
Connection cross section (fine-strand)75 - 75 mm²
Connection cross section (solid-core)25 - 75 mm²
Number of connections per pole0
Pole codificationL, N, PE
Mechanical codingyes
Colour coding/contact insertBlack
Type of lockingIntegrated in plug-in connector
With strain reliefyes
Product codes
SAPDJT657
STK1911200
PLC1911200
GTIN/EAN4016514012374
Manufacturer part number375.504
Vendor material number375.504
Basic information
Package measurements (L x W x H)70 x 130 x 20 mm
Package volume0.182 l
Package weight0.02 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121402
BrandBACHMANN
VendorBACHMANN SALES GMBH & CO. KG
