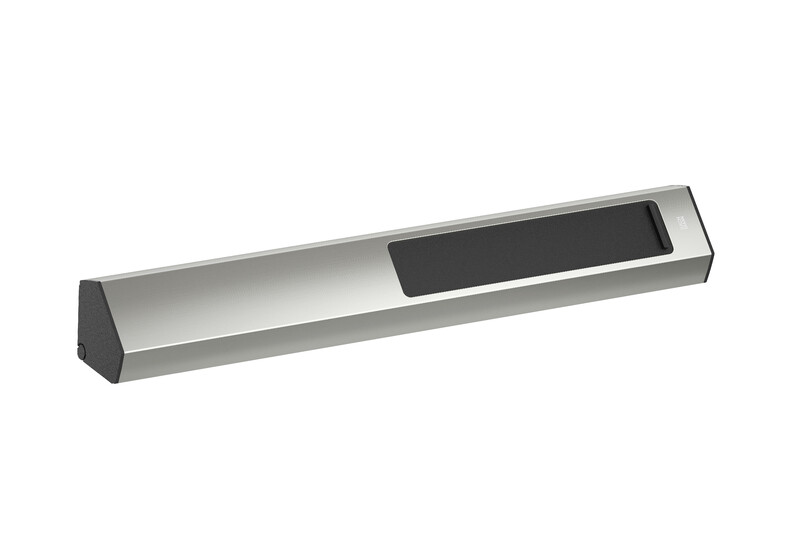

SOCKET OUTLET CASIA 2 4 X SCHUKO SOCKETS
Product code
2412115

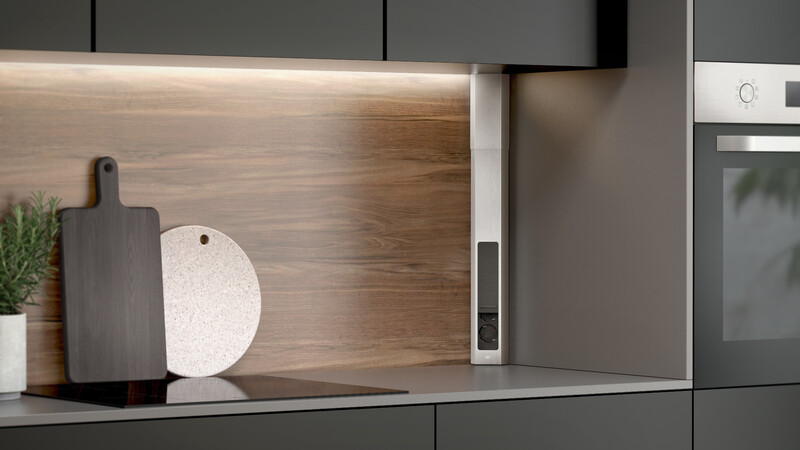

CASIA 2 outlet panel is ideal for corner installation, used as a surface-mounted unit between upper and lower cabinets.
CASIA 2 contains 4 Schuko outlets. The housing is made of aluminum with a matte finish. The outlets are black and plastic. The surface is fingerprint-resistant and finely finished. It features a length-adjustable telescopic element suitable for installation in various kitchen types. The panel length is 475.4 mm, and with the telescopic element, it can be extended by 109.5 mm to a total length of 585 mm. The sliding protective cover allows the outlets to be completely hidden.
Includes a fixed 2-meter power cord and a detachable plug. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Socket outlet combination (EC000330)
Housing shapeOther
Number of socket outlets CEE 7/1 (no protective contact)0
Number of socket outlets with protective contact CEE 7/3 (type F)4
Number of socket outlets with protective contact CEE 7/5 (type E)0
Number of socket outlets CEE 7/16 (EURO)0
Number of cold device socket outlets0
Number of socket outlets British Standard BS 13630
Number of socket outlets Danish standard (earthing pin, type K)0
Number of socket outlets Italian standard type Bipasso0
Number of socket outlets Italian standard type P110
Number of socket outlets Italian standard type P170
Number of socket outlets Italian standard type P300
Number of NEMA-outlets0
Number of socket outlets Swiss standard type 130
Number of socket outlets Swiss standard type 150
Product codes
SAPCZX540
STK2412115
PLC2412115
GTIN/EAN4057298145568
Manufacturer part number932.004
Vendor material number932.004
Basic information
Package measurements (L x W x H)545 x 135 x 75 mm
Package volume5.518 l
Package weight1.2 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121308
BrandBACHMANN
VendorBACHMANN SALES GMBH & CO. KG
