SOCKET-OUTLET PANEL DESK2 3 X S-O USB C/C 100W CM
Product code
1435722

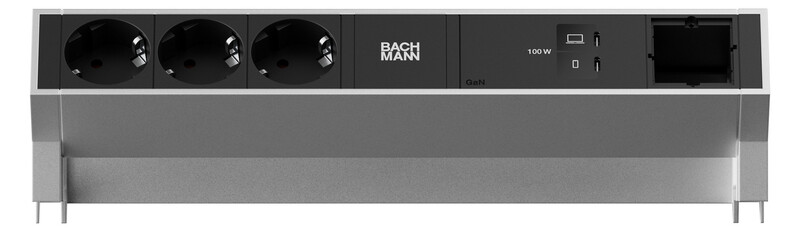

DESK 2 power panel with 3 Schuko sockets, USB C/C 100W charging, and 1 custom module slot. The charger has two charging ports. The power panel color is inox.
Desired modules can be selected individually for the product's empty module slot and are available with their own product codes. For example, Cat6a 7219600, or HDMI 1435615 with frames 1435610 or 1435611, or charging module 2412096.
The product includes a 0.2m Wieland supply cable, which must be connected to one of the following separately orderable extension cables: 2412024 (1.5m), 2412025 (2m), 2412026 (3m), 2412027 (4m), 2412028 (5m), or 2412029 (10m). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Desk connecting unit (EC002759)
ModelSurface mounting
Foldingno
Extendableno
ShapeRectangular
MaterialAluminium
ColourAluminium
Length336 mm
Width85.5 mm
Height88 mm
Number of socket outlets with protective contact CEE 7/3 (type F)3
Number of socket outlets with protective contact CEE 7/5 (type E)0
Number of socket outlets British Standard BS 13630
Number of socket outlets Swiss standard type 130
Number of socket outlets Swiss standard type 150
Number of socket outlets Swiss standard type 230
Product codes
SAPDMO176
STK1435722
PLC1435722
GTIN/EAN4057298219870
Manufacturer part numberBM0023761
Vendor material numberBM0023761
Basic information
Package measurements (L x W x H)336 x 86 x 88 mm
Package volume2.543 l
Package weight0.88 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121308
BrandBACHMANN
VendorBACHMANN SALES GMBH & CO. KG
