SOCKET-OUTLET PANEL SOCKET-OUTLET PANEL DUE
Product code
2514476

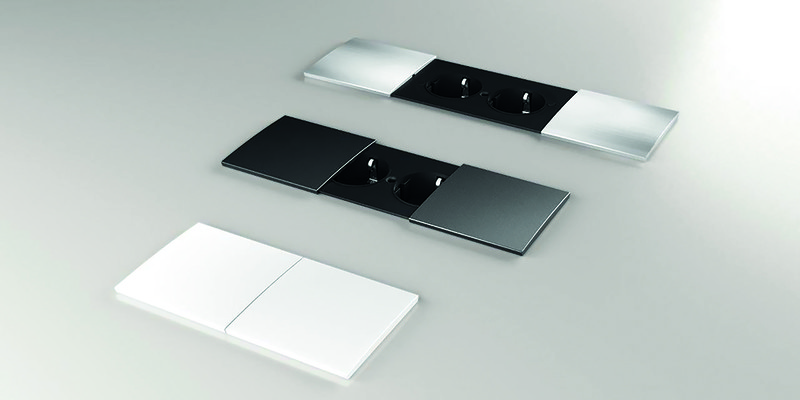

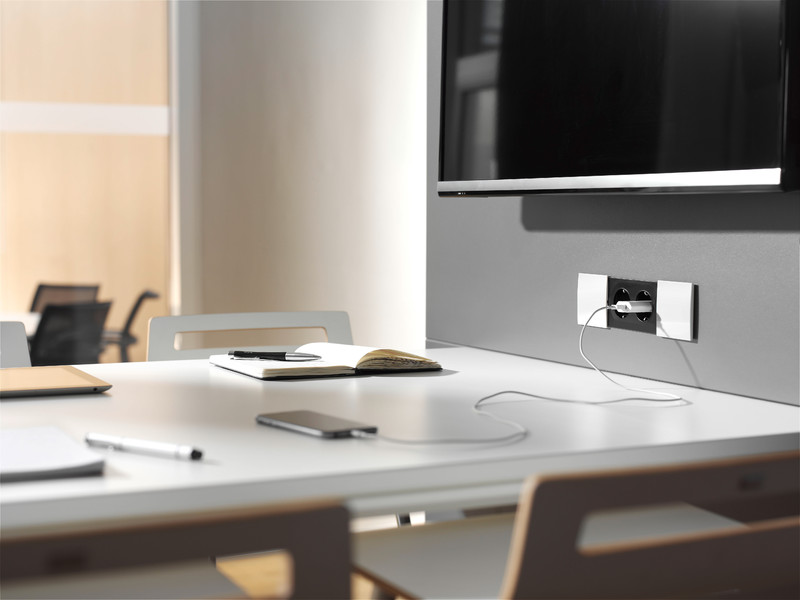

The DUE socket panel has 2 sockets. The DUE socket panel is used with the DUE sliding cover pair 1435668 or 1435669, which must be ordered separately. Stainless steel-colored covers are also available upon request. The covers are made of plastic and can be easily replaced without tools. The socket panel includes a 2m connection cable and a detachable plug included in the package. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Socket outlet combination (EC000330)
Housing shapeRectangular
Number of socket outlets with protective contact CEE 7/3 (type F)2
Number of socket outlets CEE 7/16 (EURO)0
Number of cold device socket outlets0
Number of socket outlets Italian standard type Bipasso0
Number of socket outlets Italian standard type P110
Number of socket outlets Italian standard type P170
Number of NEMA-outlets0
Number of socket outlets Swiss standard type 130
Number of socket outlets Swiss standard type 150
Number of socket outlets Swiss standard type 230
Number of socket outlets Swiss standard type 250
Number of universal multi standard sockets0
With on/off switchno
Residual current circuit breaker (RCCB)no
Product codes
SAPCCT810
STK2514476
PLC2514476
GTIN/EAN4057298000263
Manufacturer part number929.000
Vendor material number929.000
Basic information
Package measurements (L x W x H)200 x 130 x 90 mm
Package volume2.34 l
Package weight0.52 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121308
BrandBACHMANN
VendorBACHMANN SALES GMBH & CO. KG
