SOCKET-OUTLET PANEL SOCKET-OUTLET PANEL PIX
Product code
2514474

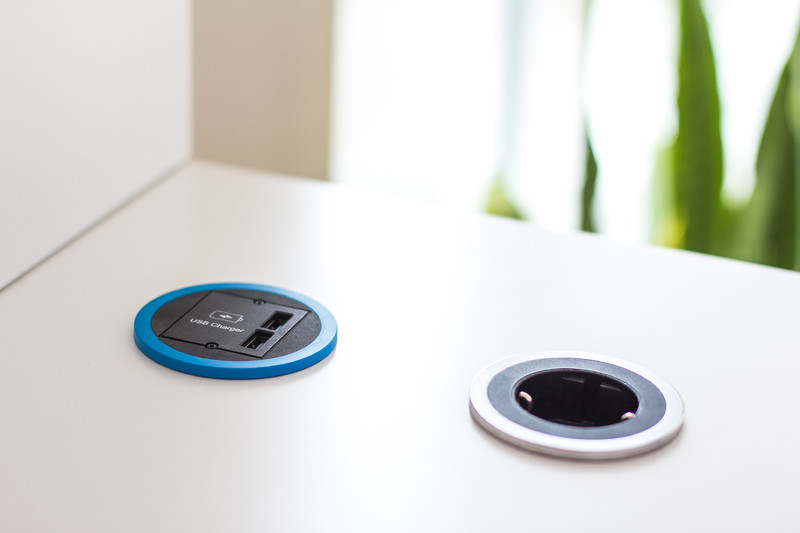

PIX socket, single round and black in color. Three post-installation interchangeable decorative rings are included: black, grained texture, and white.
Versatile and elegant socket that is ready for installation without a junction box. Suitable for installation at work and study stations, bed heads, night tables, entrance areas, furniture, partition walls, islands, and other similar locations.
Integrated water drainage built into the socket structure. Body diameter 56mm, installation depth 46mm. Neck diameter 68mm.
Optional cover sets are available for the socket: black 1435699 or white 1435700. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Socket outlet combination (EC000330)
Housing shapeOther
Number of socket outlets with protective contact CEE 7/3 (type F)1
Number of socket outlets CEE 7/16 (EURO)0
Number of cold device socket outlets0
Number of socket outlets British Standard BS 13630
Number of socket outlets Italian standard type Bipasso0
Number of socket outlets Italian standard type P110
Number of socket outlets Italian standard type P170
Number of NEMA-outlets0
Number of socket outlets Swiss standard type 130
Number of socket outlets Swiss standard type 150
Number of socket outlets Swiss standard type 230
Number of socket outlets Swiss standard type 250
Number of universal multi standard sockets0
With on/off switchno
Product codes
SAPCCT812
STK2514474
PLC2514474
GTIN/EAN4057298014024
Manufacturer part number926.001
Vendor material number926.001
Basic information
Package measurements (L x W x H)125 x 125 x 115 mm
Package volume1.797 l
Package weight0.35 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121308
BrandBACHMANN
VendorBACHMANN SALES GMBH & CO. KG
