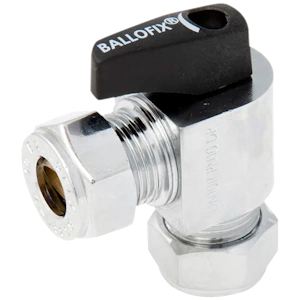

ELBOW CONNECTOR BALLOFIX 12x12 CHROME

Product code
6560031
Ballofix was developed in the 1960s and has now been used in over 110 million installations worldwide. Ballofix ball valve fittings offer the highest possible quality, performance, and design. Applications: domestic water, heating, and cooling installations. Material: zinc-resistant brass CW625N chromed. Max. 95°C PN10 bar. STF type approved. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ball valve (EC011343)
Housing materialBrass
Outer pipe diameter connection 112 mm
Connection 1Compression ring
Nominal diameter connection 2Other
Outer pipe diameter connection 212 mm
Connection 2Compression ring
ModelRight-angled
OperationLever handle

Product codes

SAPAMQ329
HPAC6560031
PLC6560031
GTIN/EAN5708537079418
Manufacturer part number42193700-226052
Vendor material number6560031

Basic information

Package measurements (L x W x H)50 x 40 x 23 mm
Package volume0.046 l
Package weight0.1 kg
Base uniteach
Package units1 / 10 / 100
Package contents
UNSPSC40141618
BrandBALLOFIX
VendorBROEN A/S, BUILDING

Documents (6)

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)0.484
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameBROEN ApS
Postal addressSkovvej 30, DK-5610 Assens, Denmark
