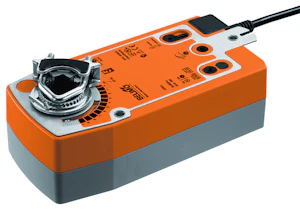

ACTUATOR BELIMO SFA 20NM 4M2
Product code
8955069
Damper motor SFA 20NM, 24/230V, open-close, safety function. Belimo damper motors are easily installed for controlling ventilation dampers. Typically, the damper motor is mounted directly onto the shaft. The product features a universal mounting bracket suitable for the most common shafts available on the market. It also includes an anti-rotation rod, commonly known as the back iron. Usually, no additional components are required for installation. A wide range of optional accessories is available for this product. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Electric servomotor (EC011290)
Suitable for valveno
Suitable for air accessoryyes
Supply voltage24 - 125 V DC / 24 - 240 V AC
Control signal2-point
Energy consumption in operation7 W
Energy consumption at rest3.5 W
ModelRotating
Connection cable length1 m
Connection to stop valveNone
Return at zero supply voltageyes
Type of safety functionSpring
Principle of operation safety functionNO/NC (depends on mounting)
Auxiliary contactsno
Position reporting systemNone
Auxiliary contacts optionalyes
Product codes
SAPCBK162
HPAC8955069
PLC8955069
GTIN/EAN6415889550692
Manufacturer part numberSFA
Vendor material numberSFA
Basic information
Package measurements (L x W x H)290 x 125 x 110 mm
Package volume3.988 l
Package weight2.15 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101504
BrandBELIMO
VendorBELIMO FINLAND OY
