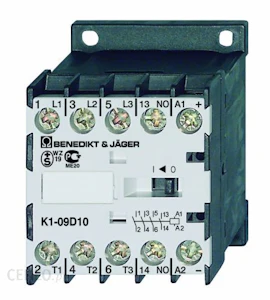

CONTACTOR RELAY 3NO+1NC 3A AC15 COIL 230VAC
Product code
3889503
B&J's contactor products are top-of-the-line in their field. The long service life, load capacity, and compact size of the contactors ensure they are suitable even for the most demanding process and elevator applications. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz230-230 V
Voltage type for actuatingAC
Number of normally closed contacts as main contact1
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-1, 400 V10 A
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Suitable for distribution boardno
Product codes
SAPAEM483
STK3889503
PLC3889503
GTIN/EAN9005738044594
Manufacturer part numberK1-07D31230
Vendor material number3889503
Basic information
Package measurements (L x W x H)60 x 50 x 50 mm
Package volume0.15 l
Package weight0.16 kg
Base uniteach
Package units1 / 10 / 3000
Package contents–
UNSPSC39121529
BrandBENEDICT
VendorUTU OY
