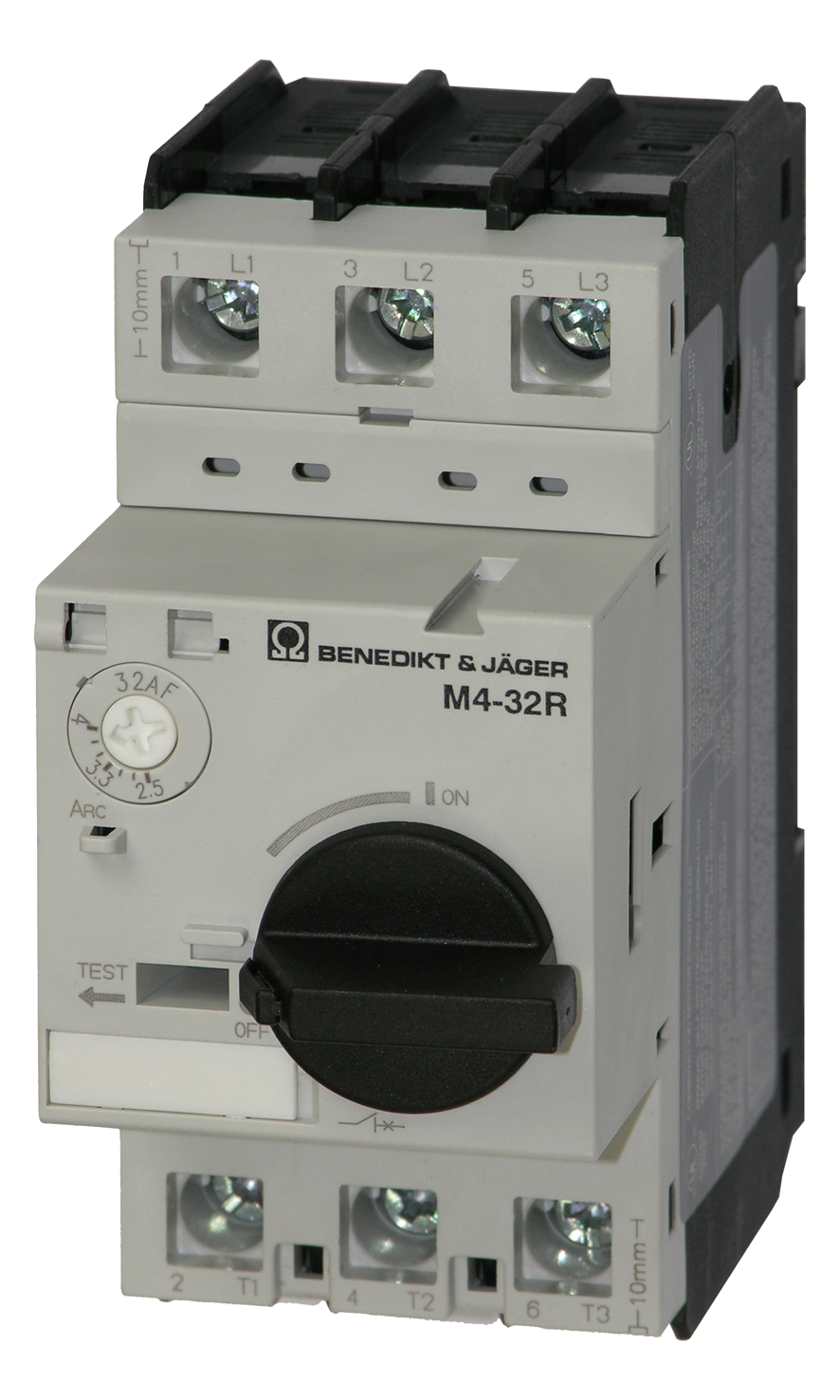

MOTOR CIRCUIT-BREAKER M4-32R 9-13A 100KA
Product code
3751236
From our motor protection switch range, you can find a comprehensive selection of thermal and magnetic motor protection switches for protecting electric motors against overload, short circuits, and phase failures up to 32A, modularly rated and up to 100A for higher currents with breaking capacity up to 100kA, available in DIN-rail and base-mounted versions. In addition to motor protection switches, our range includes auxiliary and alarm contacts, undervoltage and thermal release devices, supply rail systems, and enclosures for installation support. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Motor protection circuit-breaker (EC000074)
Overload release current setting9-13 A
With thermal overload protectionyes
Phase failure sensitiveno
Switch off techniqueElectronic
Rated operating voltage690-690 V
Type of electrical connection of main circuitScrew connection
Type of control elementTurn button
With integrated auxiliary switchyes
With integrated under voltage releaseno
Number of poles3
Degree of protection (IP)IP20

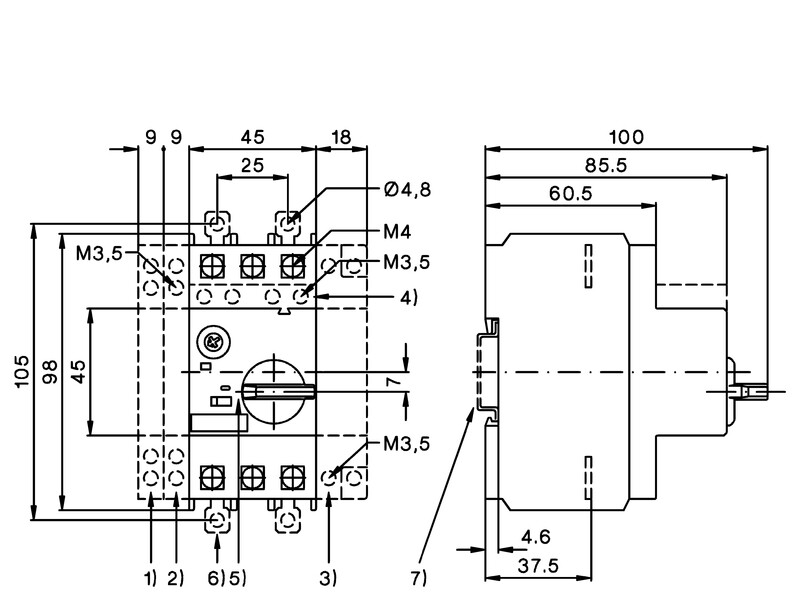

Height105 mm
Width45 mm
Depth100 mm
Product codes
SAPANQ552
STK3751236
PLC3751236
GTIN/EAN9005738205179
Manufacturer part numberM4-32R-13
Vendor material number3751236
Basic information
Package measurements (L x W x H)100 x 45 x 100 mm
Package volume0.45 l
Package weight0.36 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121521
BrandBENEDICT
VendorUTU OY
