MOTOR CIRCUIT-BREAKER M4-63R 22-32A 50KA
Product code
3751242
From our motor protection switch range, you can find a comprehensive selection of thermal and magnetic motor protection switches for protecting electric motors against overload, short circuits, and phase failures up to 32A, modularly rated and up to 100A for higher currents with breaking capacity up to 100kA, available in DIN-rail and base-mounted versions. In addition to motor protection switches, our range includes auxiliary and alarm contacts, undervoltage and thermal release devices, supply rail systems, and enclosures for installation support. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Motor protection circuit-breaker (EC000074)
Overload release current setting22-32 A
With thermal overload protectionyes
Phase failure sensitiveno
Switch off techniqueElectronic
Rated operating voltage690-690 V
Type of electrical connection of main circuitScrew connection
Type of control elementTurn button
With integrated auxiliary switchyes
With integrated under voltage releaseno
Number of poles3
Degree of protection (IP)IP20

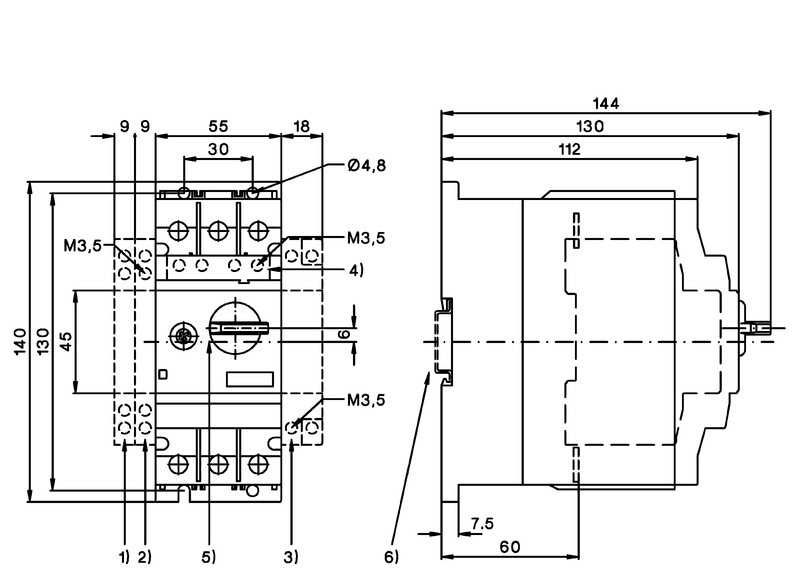

Height140 mm
Width55 mm
Depth144 mm
Product codes
SAPANQ558
STK3751242
PLC3751242
GTIN/EAN9005738205414
Manufacturer part numberM4-63R-32
Vendor material number3751242
Basic information
Package measurements (L x W x H)145 x 55 x 140 mm
Package volume1.117 l
Package weight1 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121521
BrandBENEDICT
VendorUTU OY
