MOTOR STARTER P1W 7.5KW C. 230V SEL.SW+R-PB
Product code
3751312
Our selection includes motor contactors designed for special and motor-starting loads, manufactured according to the highest technical standards. Explore our widest range of motor contactors. When using our products, you gain significant advantages. Compact contactors with maximum performance are suitable for use in extreme temperatures ranging from -40°C to +90°C and over a very wide range of control voltage variations. The contactors' design is engineered to withstand extreme conditions commonly found in industrial applications, on ships, and in mobile equipment, such as dust, sand, high humidity, vibrations, and shocks. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Motor starter/motor starter combination (EC001037)
Type of motor starterDirect online starter (DOL)
With short-circuit releaseno
Rated control supply voltage AC 50 Hz230-230 V
Rated control supply voltage AC 60 Hz0 - 0 V
Rated control supply voltage DC0 - 0 V
Voltage type for actuatingAC
Rated operation power at AC-3, 400 V7.5 kW
Rated operation current Ie32 A
Overload release current setting30 - 30 A
Type of electrical connection of main circuitScrew connection
Type of electrical connection for auxiliary- and control current circuitScrew connection
Degree of protection (IP)IP65
Product codes
SAPANP142
STK3751312
PLC3751312
GTIN/EAN9005738956910
Manufacturer part numberP1W18230
Vendor material number3751312
Basic information

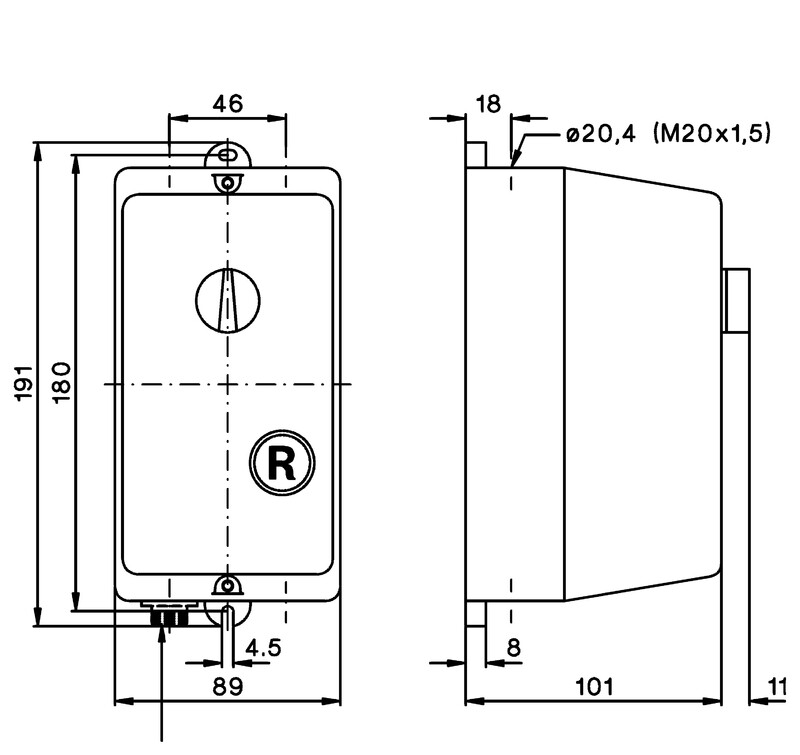

Package measurements (L x W x H)122 x 89 x 191 mm
Package volume2.074 l
Package weight0.6 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121521
BrandBENEDICT
VendorUTU OY
