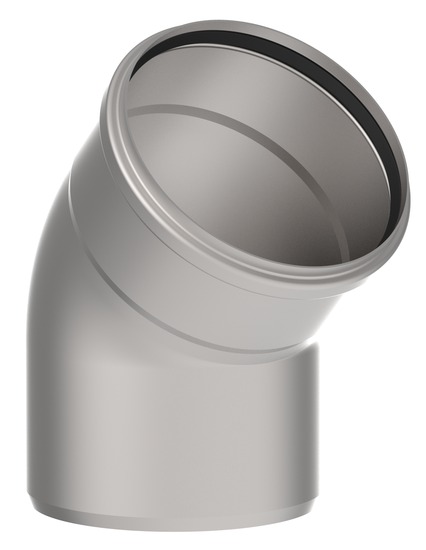

BEND BLÜCHER 250x45 S
Product code
0250687
BLÜCHER® EuroPipe products are manufactured in sizes from o40mm to o315mm and lengths from 0.15m to 6m. The range is complemented by elbows, tees, and pipe supports. The pipes can be used both above ground and underground. Due to their light weight, installation requires only one person. The minimal need for pipe supports and the flexible pipe system significantly save time during installation. BLÜCHER® EuroPipe is easy to install and connect to manholes, chutes, and other piping systems without adapters or fittings.
BLÜCHER® EuroPipe pipes and fittings can be used for both new construction and renovation projects. They are suitable for example for wastewater conveyance, stormwater drainage, vacuum drainage, and roof drain systems in residential buildings, hospitals, institutional kitchens, food and beverage, chemical, and pharmaceutical industries, as well as for dual drainage systems on ships. The smooth surface of stainless steel and high flow capacity reduce the adhesion of sludge to the inner pipe surfaces, ensuring low maintenance requirements and a long service life. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material quality connection 1Stainless steel 316 L (1.4404)
Surface treatment connection 1Pickled
Material quality connection 2Stainless steel 316 L (1.4404)
Surface treatment connection 2Pickled
ShapeBend
Bend angle45 °
Outer pipe diameter connection 1250 mm
Wall thickness, connection 11.5 mm
Connection 1Slide sleeve
Outer pipe diameter connection 2250 mm
Wall thickness, connection 21.5 mm
Material sealingEthylene-propylene diene monomer rubber (EPDM)
Product codes
SAPANH563
HPAC0250687
PLC0250687
GTIN/EAN5705499414028
Manufacturer part number820.045.250 S
Vendor material number820.045.250 S
Basic information
Package measurements (L x W x H)580 x 375 x 250 mm
Package volume36.25 l
Package weight6.53 kg
Base uniteach
Package units1
Package contents–
UNSPSC40141920
BrandBLÜCHER
VendorBLÜCHER METAL A/S
