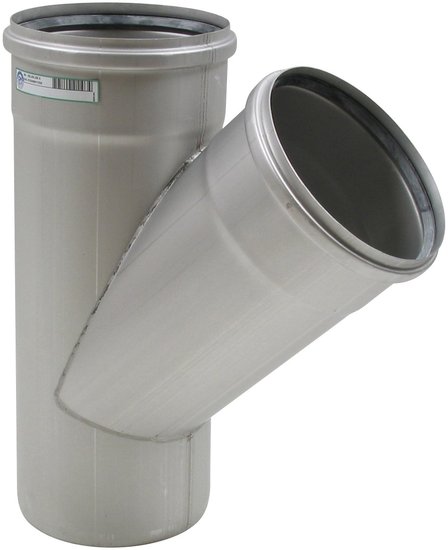

BRANCH BLÜCHER 200x200x45 S

Product code
0251169
BLÜCHER® EuroPipe products are manufactured in sizes from 40mm to 315mm and lengths from 0.15m to 6m. The range is complemented by elbows, tees, and pipe supports. The pipes can be used both above ground and underground. Due to their light weight, installation requires only one person. The minimal need for pipe supports and the flexible pipe system significantly save time during installation. BLÜCHER® EuroPipe is easy to install and connect to manholes, chutes, and other piping systems without fittings or connectors. BLÜCHER® EuroPipe pipes and fittings can be used for both new construction and renovation projects. They are suitable for wastewater conveyance, stormwater drainage, vacuum drainage, and roof drain systems in residential buildings, hospitals, institutional kitchens, food and beverage, chemical, and pharmaceutical industries, as well as dual drainage systems on ships. The smooth surface of stainless steel and high flow capacity reduce adhesion of sludge to the pipe interiors, ensuring low maintenance requirements and a long service life. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Stainless steel
Material quality connection 1Stainless steel 316 L (1.4404)
Surface treatment connection 1Pickled
Material quality connection 2Stainless steel 316 L (1.4404)
Surface treatment connection 2Pickled
Material quality connection 3Stainless steel 316 L (1.4404)
Surface treatment connection 3Pickled
ModelY-piece
Angle45 °
Outer pipe diameter connection 1200 mm
Wall thickness, connection 11.5 mm
Connection 1Slide sleeve
Outer pipe diameter connection 2200 mm
Wall thickness, connection 21.5 mm
Connection 2Slide sleeve

Product codes

SAPANH578
HPAC0251169
PLC0251169
GTIN/EAN5705499411034
Manufacturer part number838.200.200 S
Vendor material number838.200.200 S

Basic information

Package measurements (L x W x H)445 x 395 x 225 mm
Package volume39.549 l
Package weight5.4 kg
Base uniteach
Package units1
Package contents
UNSPSC40141920
BrandBLÜCHER
VendorBLÜCHER METAL A/S
