LASER LEVEL BOSCH GLL 80-33 G 4X1,5V AA

Product code
7026678

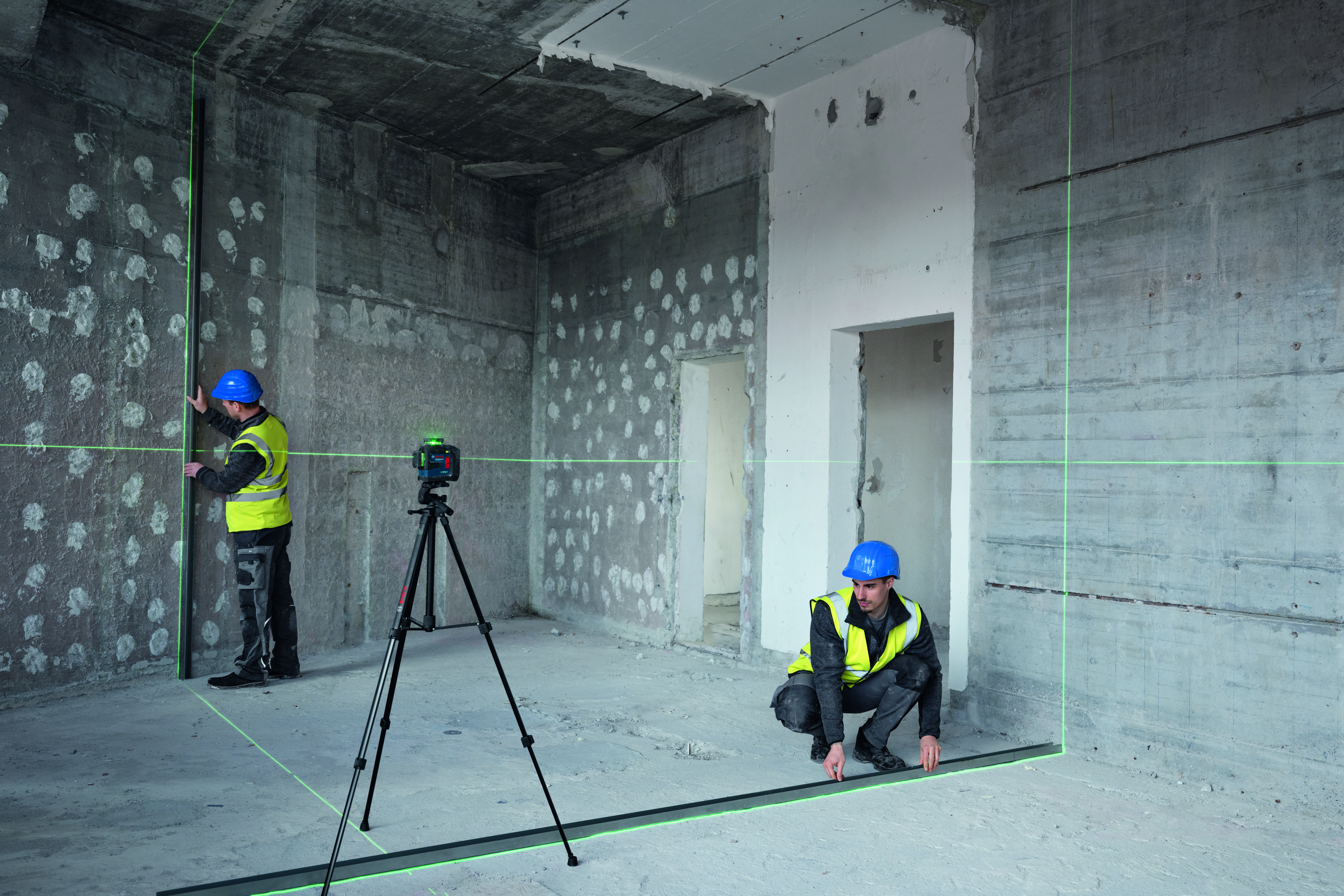

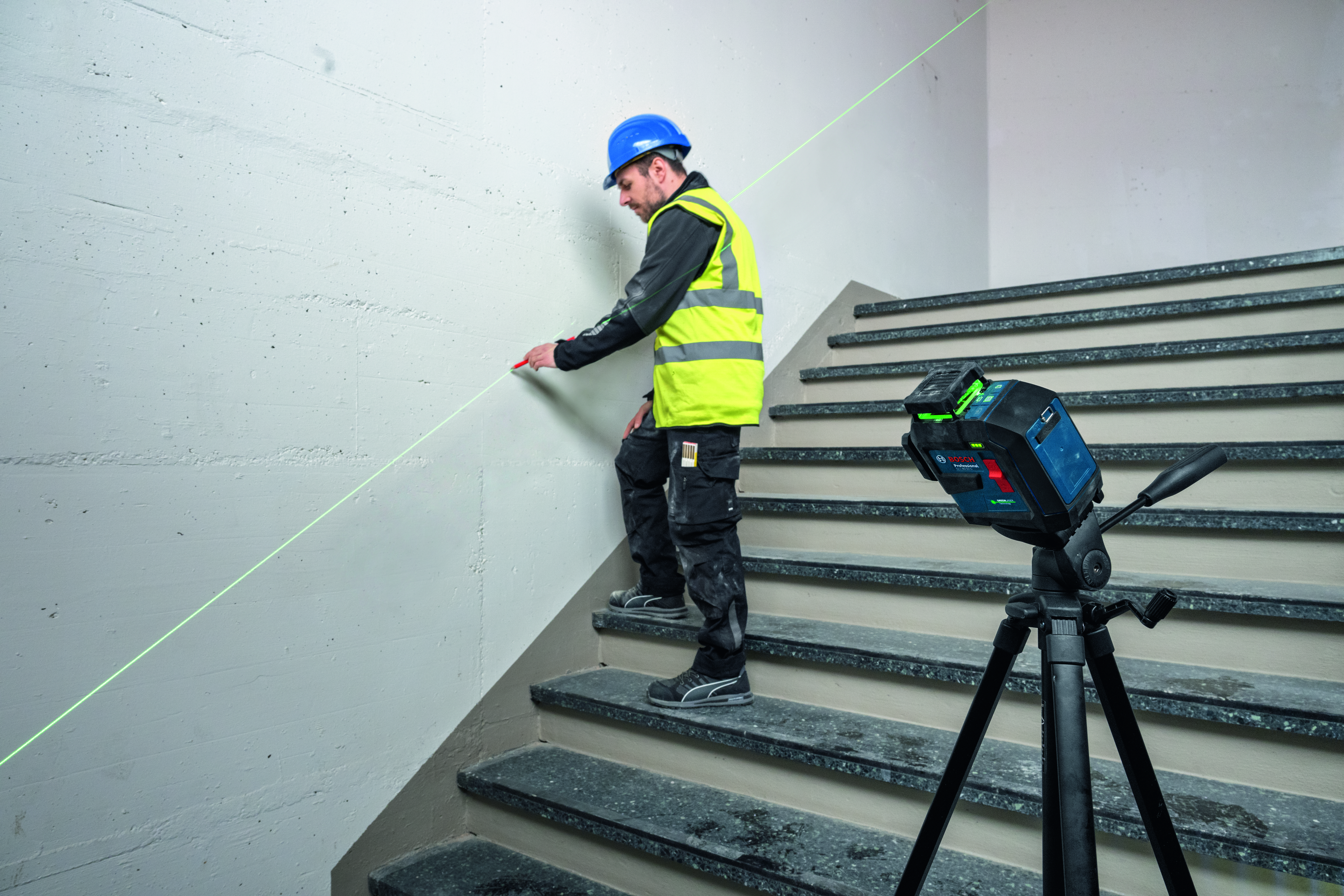

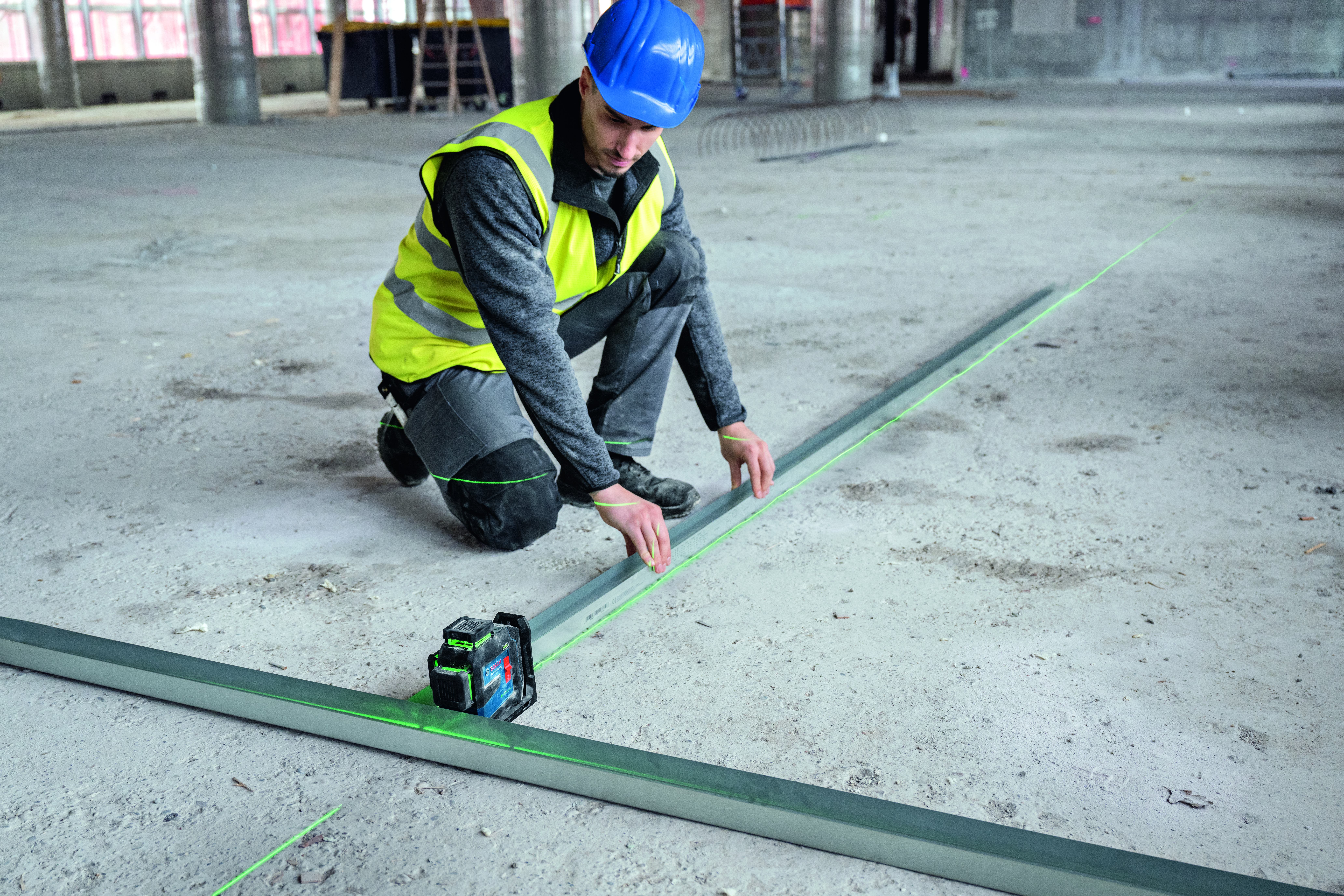

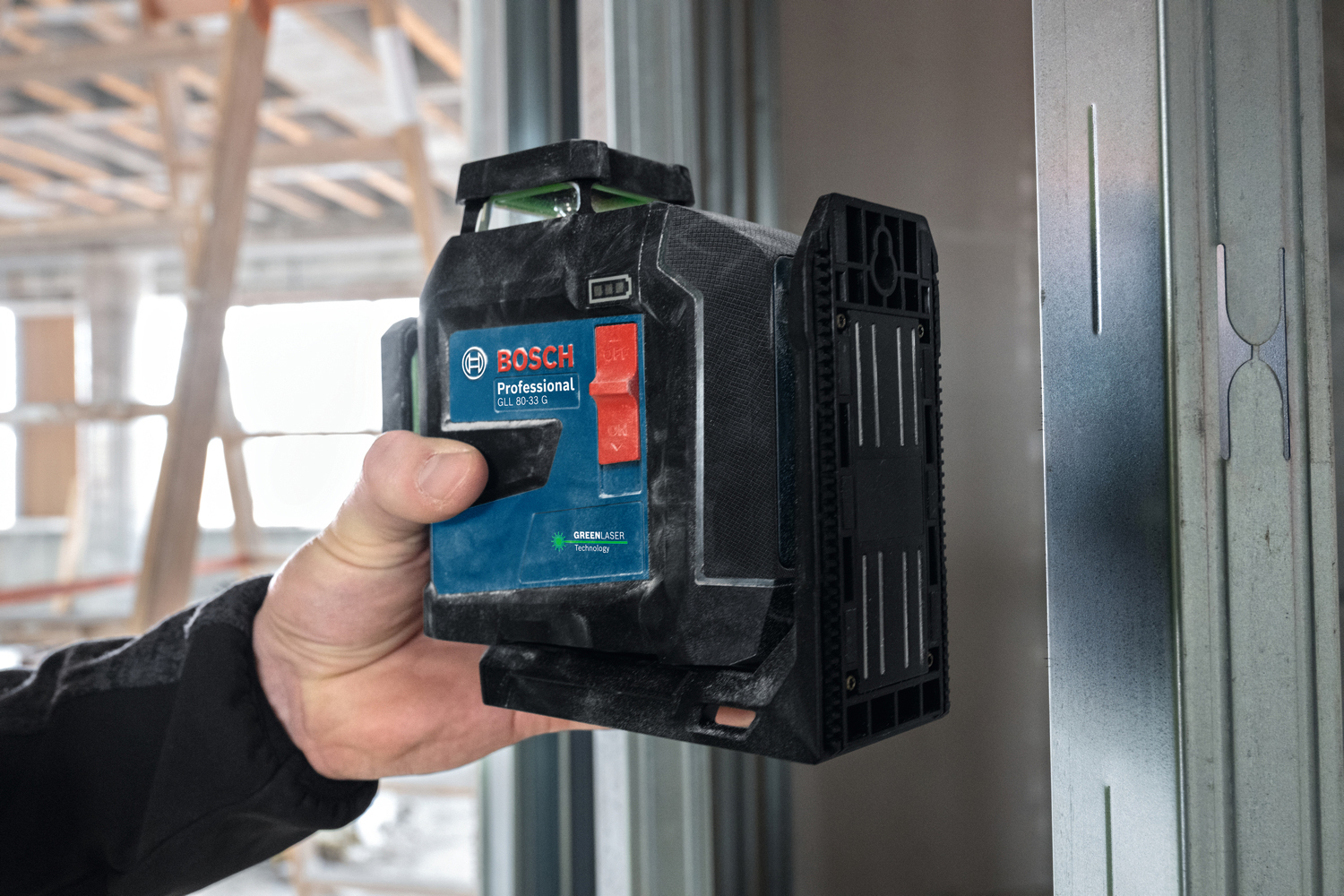

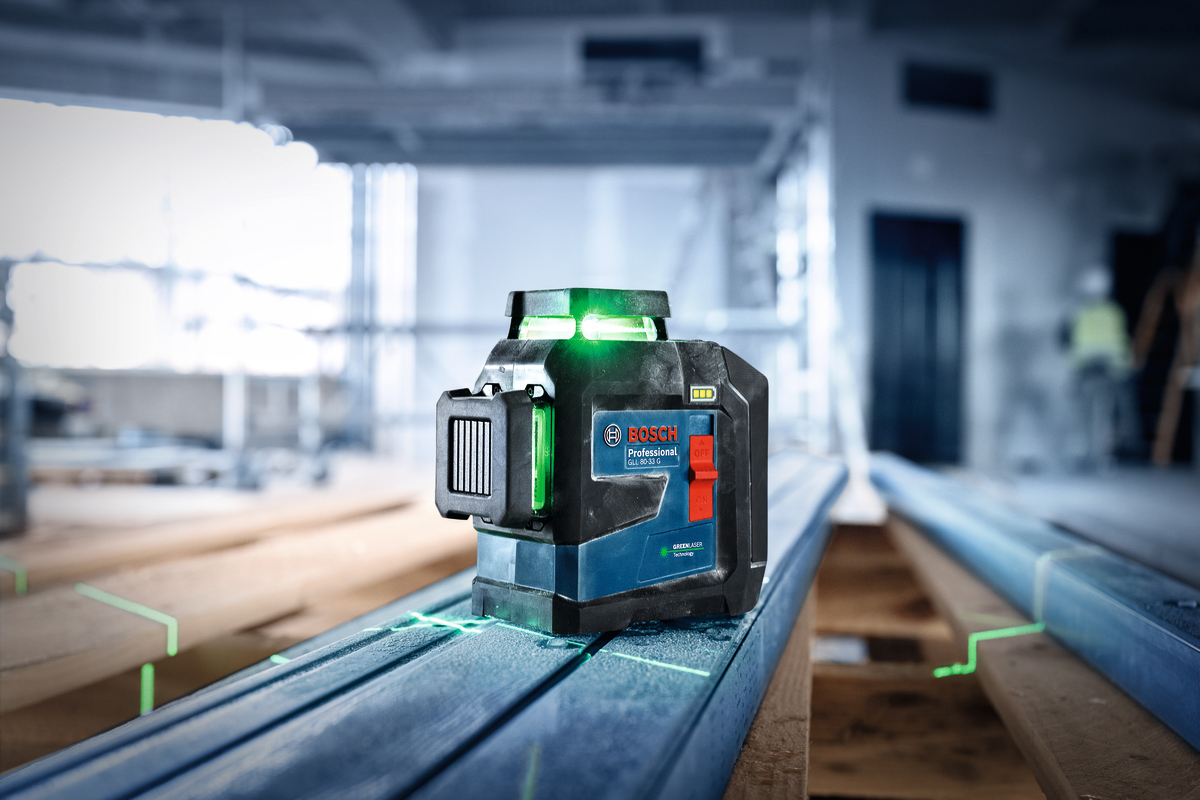

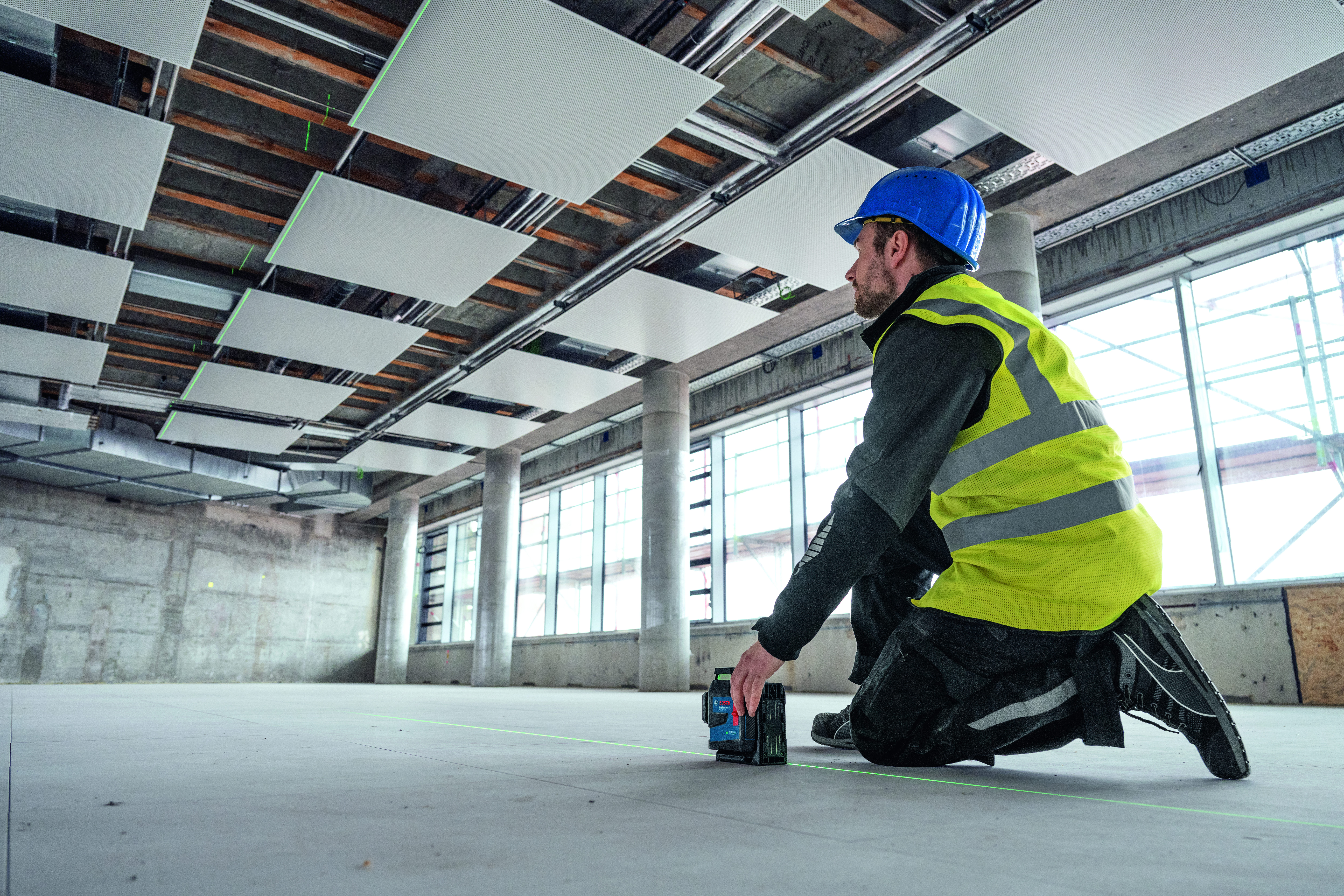

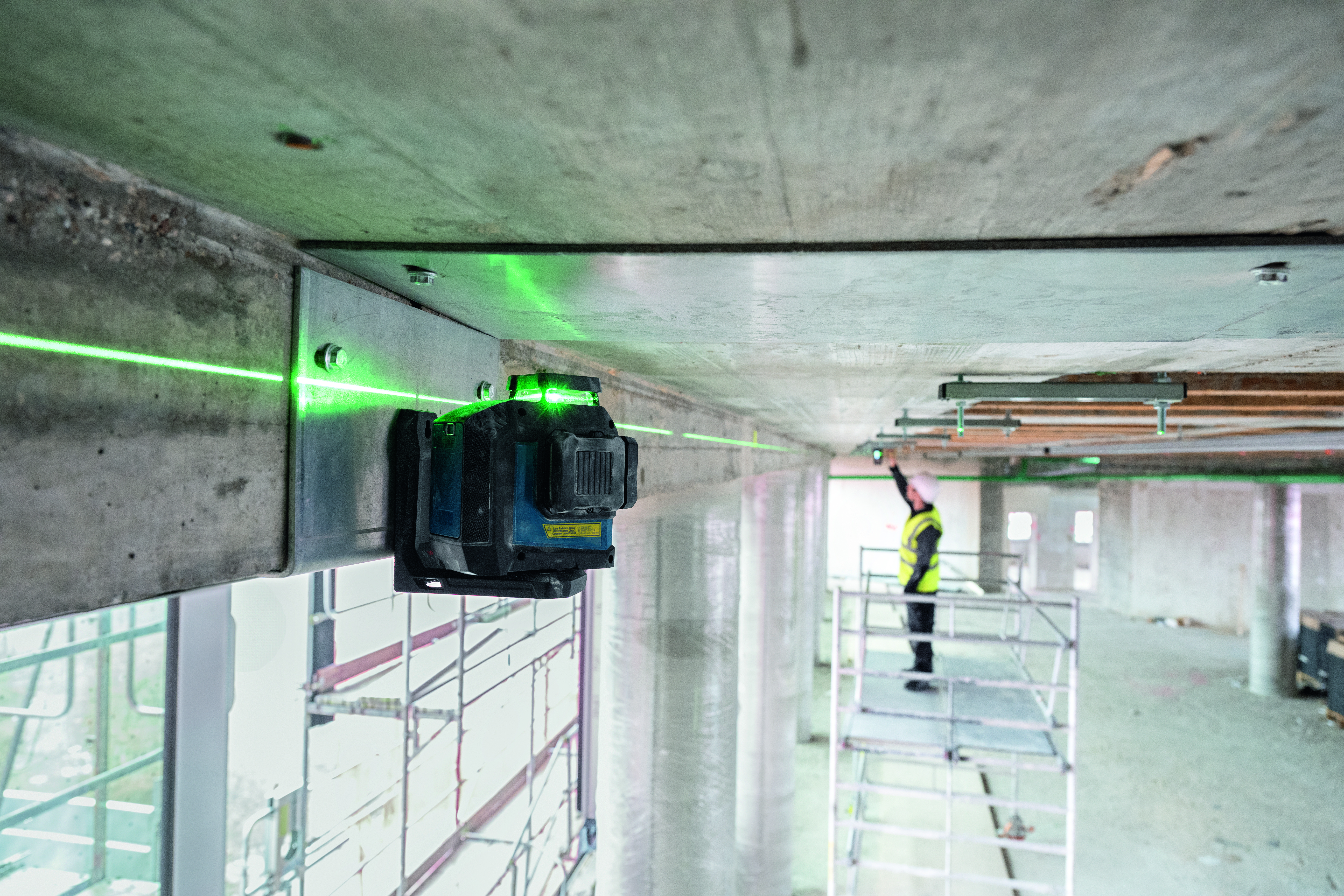

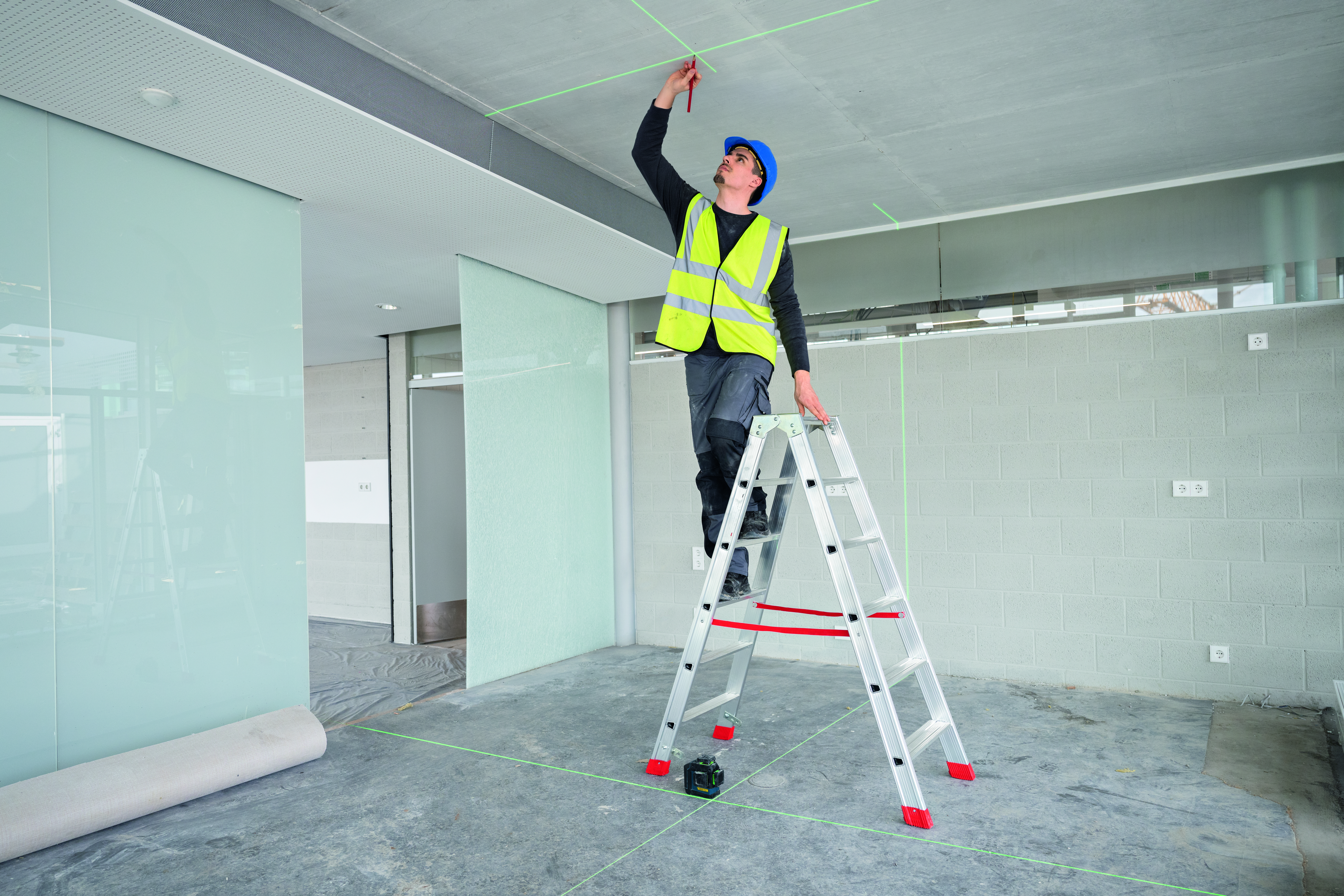

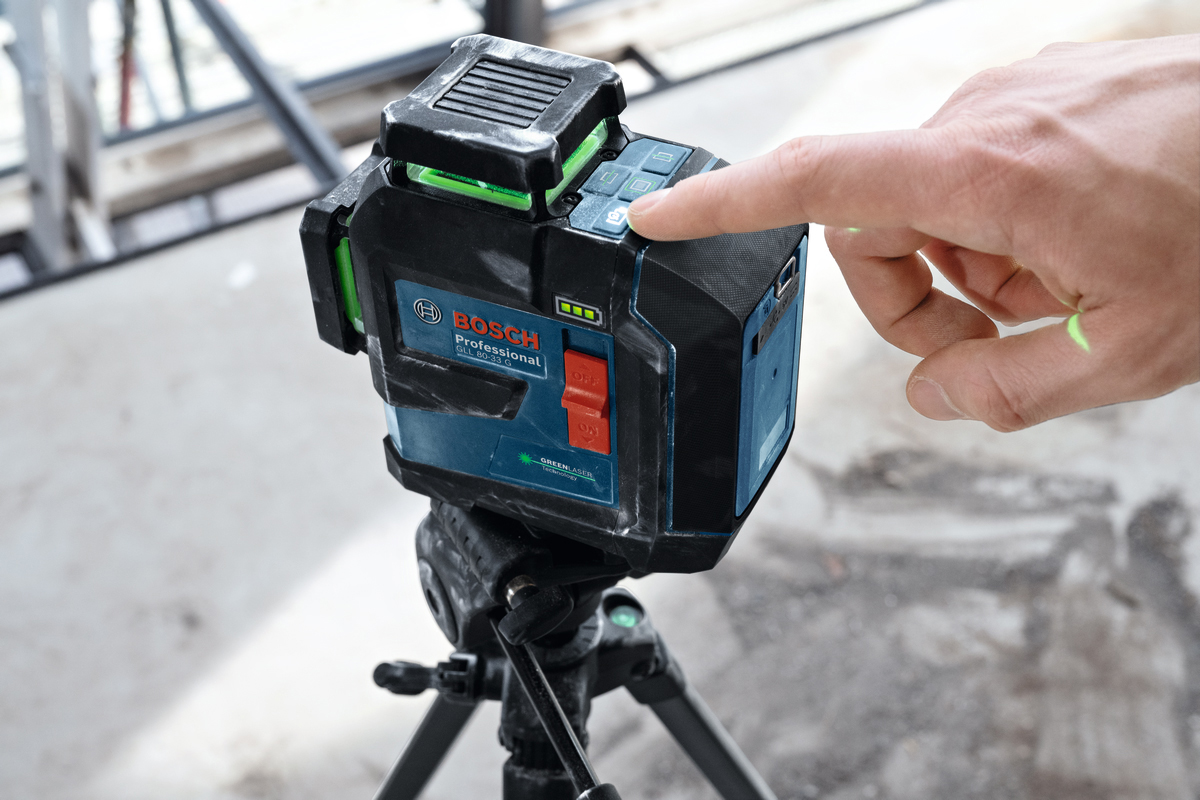

Bosch line laser GLL 80-33 G Professional for precise alignment and leveling tasks. The laser's IP65 rating and durable, rubber-reinforced housing ensure resistance to dust and water, enabling work in demanding job site conditions. The new control button allows simple selection of laser lines and offers an energy-saving mode for extended battery life. The dual power source enables selection between the BA 3.7V 3.0Ah XL Li-Ion battery and AA alkaline batteries. The BA 3.7V 3.0Ah XL battery can be charged during operation, ensuring continuous work without unnecessary interruptions. The GLL 80-33 G is ideal for various applications such as installing drywall, aligning window frames, and mounting suspended ceilings. The battery status indicator simplifies monitoring of battery charge. Time- and effort-saving 3 x 360° laser lines enable simultaneous horizontal and vertical leveling applications. The line laser automatically recognizes the LR 7 Professional laser receiver, allowing immediate start of work and extending the working range up to 80 meters. Bright green laser lines provide up to four times better visibility than red lines. The package includes 4 x 1.5 V LR6 batteries (AA), an alkaline battery adapter, a universal mount LB 10, a laser target plate, and a carrying case.

Technical specifications:

  • Battery voltage: 3.7 V

  • Operating temperature: -10 – 40 °C

  • Laser diode: 500 – 540 nm, < 10 mW

  • Laser class: 2

  • Range: max. 30 m

  • Range with receiver: max. 80 m

  • Leveling accuracy: ± 0.3 mm/m* (*variation depends on application)

  • Self-leveling range: ± 4°

  • Leveling time: 4 s

  • Protection class: IP65

  • Projection: 3 x 360° lines

  • Mount: 1/4", 5/8"

  • Operating time: 5 h (Li-ion) and 5 h (4 x AA) in 3-line mode

  • Power source: 4 x 1.5 V LR6 (AA) or 3.7 V lithium-ion battery (3,000 mAh)

  • Compatible receiver: LR 7

  • Weight: 0.93 kg

This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Laser leveling device (EC000641)
Laser classClass 2
Wavelength540 nm
Laser beam colorGreen
Levelling accuracy+/- 0.3 mm/m
Interfaceno
Rotating signalling lineno
Degree of protection (IP)IP65
Weight0.93 kg

Product codes

SAPDMT811
HPAC7026678
PLC7026678
GTIN/EAN4053423303261
Manufacturer part number0601065500
Vendor material number0601065500

Basic information

Package measurements (L x W x H)205 x 183 x 126 mm
Package volume4.727 l
Package weight0.93 kg
Base uniteach
Package units1
Package contents
UNSPSC41111615
BrandBOSCH BLUE
VendorROBERT BOSCH OY (TOOLS)
