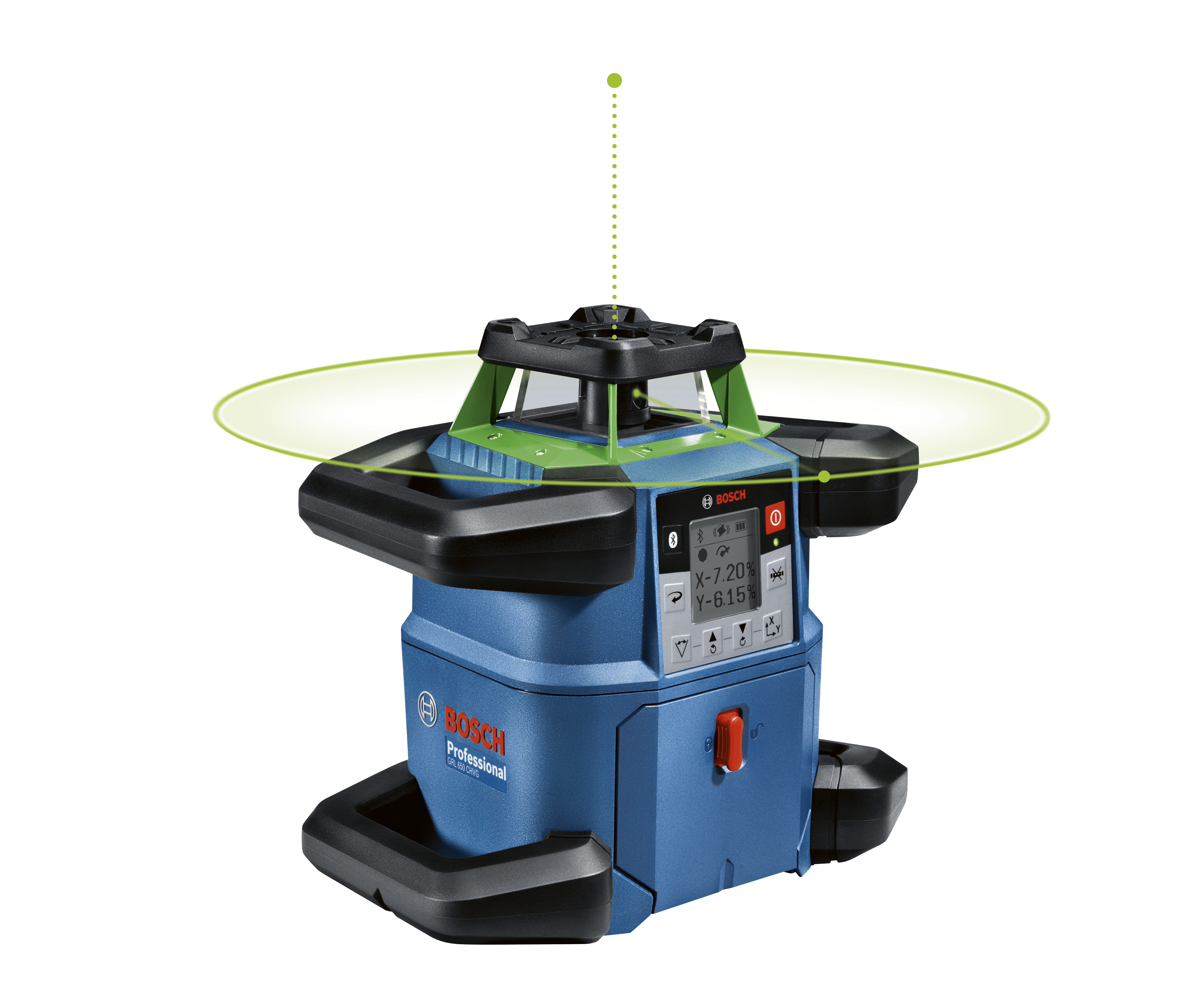

ROTARY LASER BOSCH GRL 650 CHVG GREEN

Product code
502374641
Highly durable 18V rotary laser GRL 650 CHVG is especially suitable for framing, ceiling installation, excavation, and concrete pouring. Rugged design for all demanding job site conditions. Long operating time and improved visibility in all lighting conditions thanks to green laser technology. Innovative handle ensures drop resistance up to 2 m, and IP68 provides protection against dust and water. Enclosed battery compartment. Easy-to-use and intuitive display visualizes and simplifies main functions including slope setting. Bluetooth connectivity with the Levelling Remote app for an enhanced interface and additional features. Quick and easy calibration via the app to ensure the device’s reliability and accuracy. Delivery includes:
  • rotary laser

  • LR 65G receiver with mount

  • RC 6 remote control

  • WM 6 wall mount

  • GBA 18V 4.0Ah ProCore LI battery

  • GAL 18V-40 LI battery charger

  • BA 1 battery adapter

  • 4x D batteries

  • 4x AA batteries

  • green laser safety glasses

  • green target plate

  • tripod carrying straps

  • carrying case

Technical specifications:
  • battery voltage 18 V

  • laser class 2

  • working range (diameter) 650 m

  • leveling accuracy horizontal ± 1.5 mm @30m

  • self-leveling range ± 5°

  • single/dual axis slope ± 8.5 %

  • rotation speed 150/300/600 min-1

  • tripod mount 5/8"

  • operating time with ProCore/alkaline batteries 50/60 h

  • l

    aser dimensions (W/D/H) 620/440/263 mm

This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Laser leveling device (EC000641)
Laser classClass 2
Measured value memoryyes
Interfaceyes
With remote controlyes
Rotating signalling lineyes
Battery typeOther
Housing colourBlue
Degree of protection (IP)IP68
Width188 mm
Height278 mm
Length327 mm
Weight4.3 kg

Product codes

SAPDMT852
PLC502374641
GTIN/EAN4059952593654
Manufacturer part number0601061V00
Vendor material number0601061V00

Basic information

Package measurements (L x W x H)620 x 440 x 263 mm
Package volume71.746 l
Package weight15.51 kg
Base uniteach
Package units1
Package contents
UNSPSC41111615
BrandBOSCH BLUE
VendorROBERT BOSCH OY (TOOLS)
