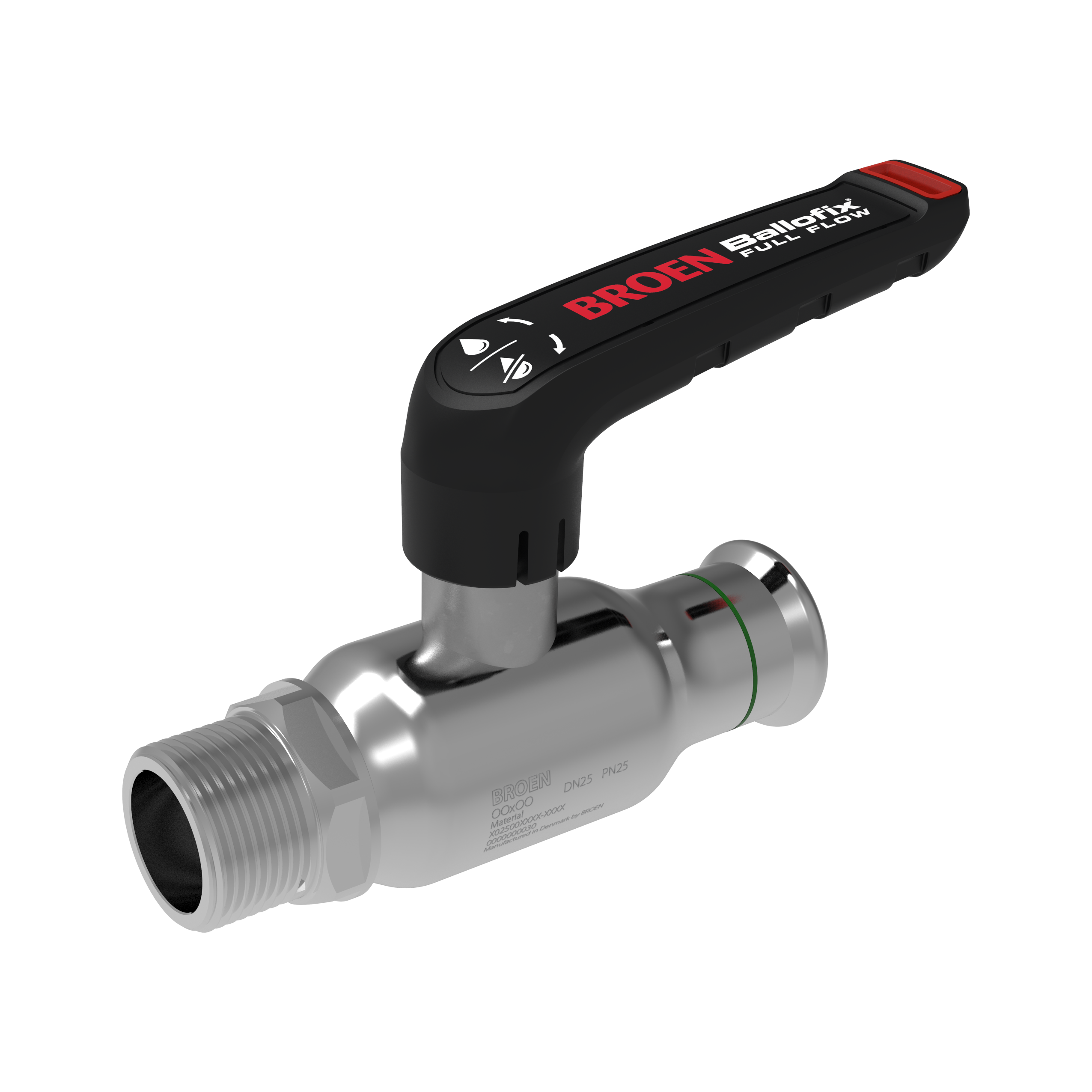

BALL VALVE FULL FLOW SS 18X3/4 PRESS/MT LOW
Product code
3765615
BROEN Full Flow valves made of electroplated steel are suitable for various applications such as heating, cooling "closed circuit" and compressed air systems.
Features
pressure class: PN16
material: P235GH EN 10217-2
operating temperature: -35 to +135 °C
M-profile This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ball valve (EC011343)
Housing materialSteel
Material qualityStainless steel 316 L (1.4404)
Nominal diameter connection 1DN 15
Outer pipe diameter connection 118 mm
Connection 1Press sleeve
Nominal diameter connection 2DN 20
Outer pipe diameter connection 226.9 mm
Connection 2External thread cylindrical BSPP-G (ISO 228-1)
Product codes
SAPCZQ600
HPAC3765615
PLC3765615
GTIN/EAN5708537747706
Manufacturer part number2015001210-0100
Vendor material number3765615
Basic information
Package measurements (L x W x H)133 x 81 x 30 mm
Package volume0.323 l
Package weight0.26 kg
Base uniteach
Package units1 / 25
Package contents–
UNSPSC40141607
BrandBROEN FULL FLOW
VendorBROEN A/S, BUILDING
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)12.4
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameBROEN ApS
Postal addressSkovvej 30, DK-5610 Assens, Denmark
