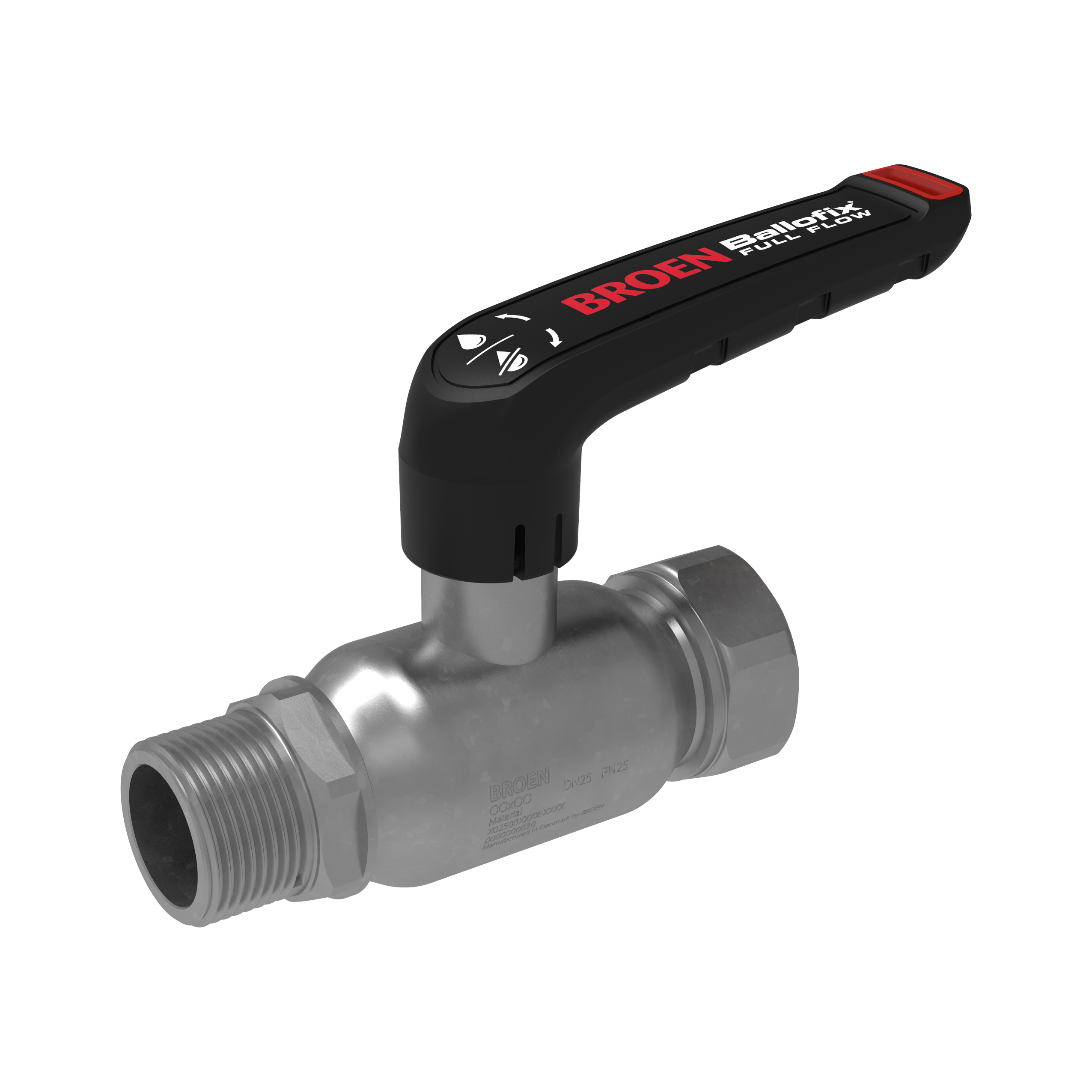

BALL VALVE FULL FLOW ZN 1 1/2 FT/MT LOW
Product code
3758133
BROEN Full Flow valves made of electroplated steel are suitable for various applications such as heating, cooling "closed circuit" and compressed air systems.
Features
pressure class: PN16
material: P235GH EN 10217-2
operating temperature: -35 to +135 °C
M-profile This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ball valve (EC011343)
Housing materialSteel
Material qualityP235GH (1.0345)
Nominal diameter connection 1DN 40
Outer pipe diameter connection 148.3 mm
Connection 1Internal thread cylindrical BSPP-G (ISO 228-1)
Nominal diameter connection 2DN 40
Outer pipe diameter connection 248.3 mm
Connection 2External thread cylindrical BSPP-G (ISO 228-1)
Product codes
SAPCZQ590
HPAC3758133
PLC3758133
GTIN/EAN5708537747072
Manufacturer part number1040002400-1100
Vendor material number3758133
Basic information
Package measurements (L x W x H)197 x 140 x 68 mm
Package volume1.875 l
Package weight1.72 kg
Base uniteach
Package units1 / 7
Package contents–
UNSPSC40141607
BrandBROEN FULL FLOW
VendorBROEN A/S, BUILDING
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)10.8188
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameBROEN ApS
Postal addressSkovvej 30, DK-5610 Assens, Denmark
