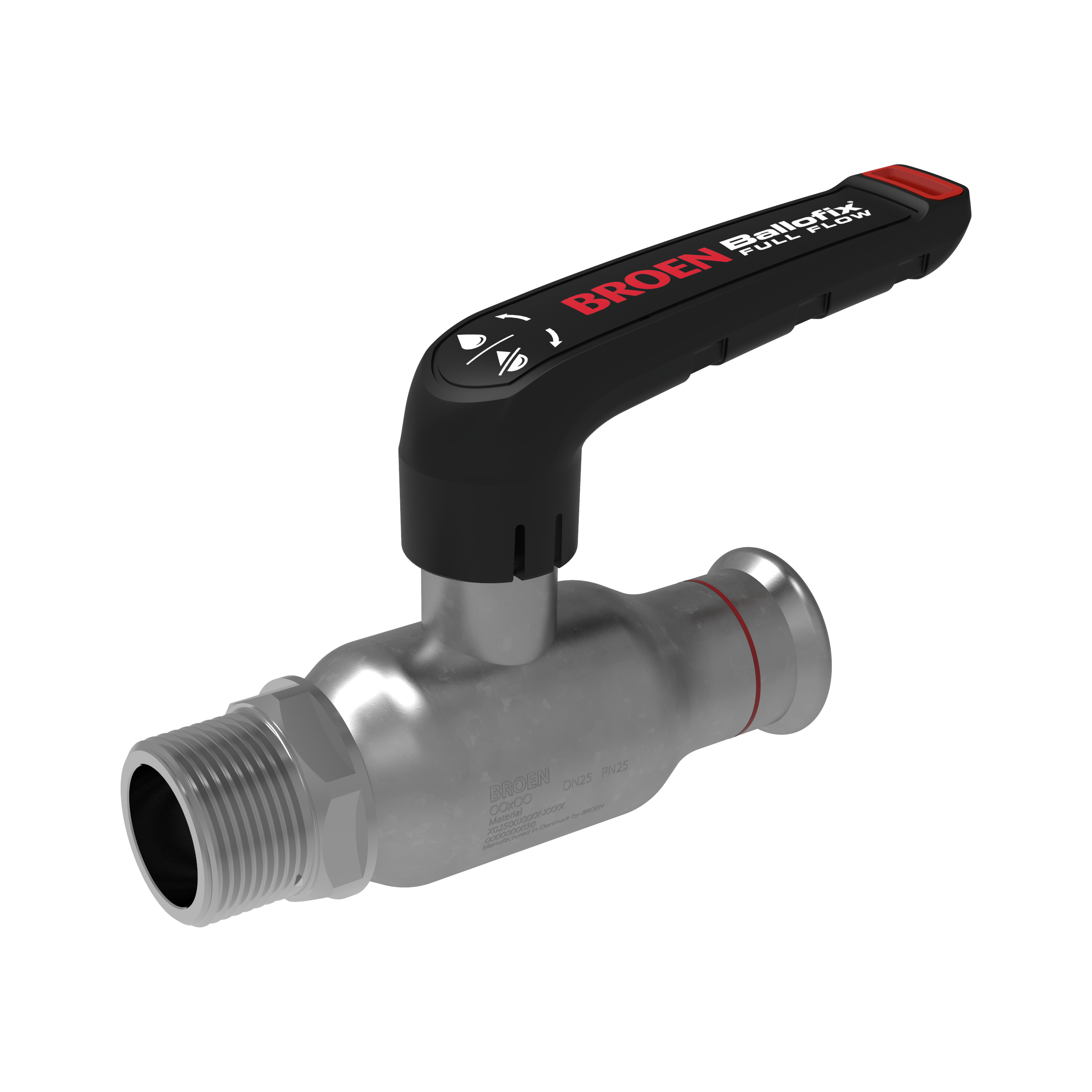

BALL VALVE FULL FLOW ZN 15X1/2 PRESS/MT LOW
Product code
3758114
BROEN Full Flow valves made of electroplated steel are suitable for various applications such as heating, cooling "closed circuit" and compressed air systems.
Features
pressure class: PN16
material: P235GH EN 10217-2
operating temperature: -35 to +135 °C
M-profile This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ball valve (EC011343)
Housing materialSteel
Material qualityP235GH (1.0345)
Nominal diameter connection 1DN 10
Outer pipe diameter connection 115 mm
Connection 1Press sleeve
Nominal diameter connection 2DN 15
Outer pipe diameter connection 221.3 mm
Connection 2External thread cylindrical BSPP-G (ISO 228-1)
Product codes
SAPCZQ571
HPAC3758114
PLC3758114
GTIN/EAN5708537748963
Manufacturer part number1010001210-1100
Vendor material number3758114
Basic information
Package measurements (L x W x H)126 x 77 x 26 mm
Package volume0.252 l
Package weight0.21 kg
Base uniteach
Package units1 / 25
Package contents–
UNSPSC40141607
BrandBROEN FULL FLOW
VendorBROEN A/S, BUILDING
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.0076
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameBROEN ApS
Postal addressSkovvej 30, DK-5610 Assens, Denmark
