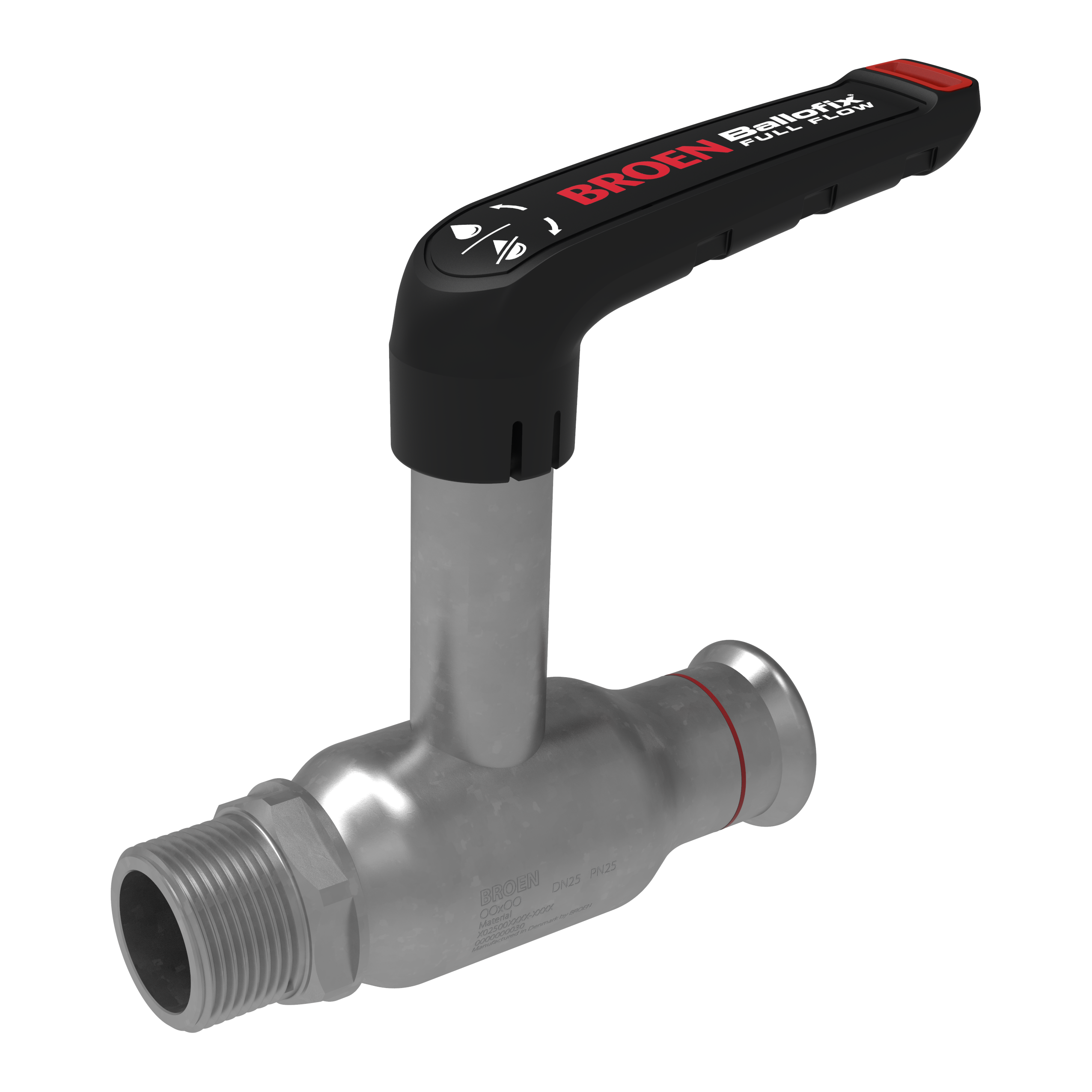

BALL VALVE FULL FLOW ZN 28x1 PRESS/MT HIGH
Product code
3758124
BROEN Full Flow valves made of electroplated steel are suitable for various applications such as heating, cooling "closed circuit" and compressed air systems.
Features
pressure class: PN16
material: P235GH EN 10217-2
operating temperature: -35 to +135 °C
M-profile This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ball valve (EC011343)
Housing materialSteel
Material qualityP235GH (1.0345)
Nominal diameter connection 1DN 25
Outer pipe diameter connection 128 mm
Connection 1Press sleeve
Nominal diameter connection 2DN 25
Outer pipe diameter connection 233.7 mm
Connection 2External thread cylindrical BSPP-G (ISO 228-1)
Product codes
SAPCZQ581
HPAC3758124
PLC3758124
GTIN/EAN5708537747256
Manufacturer part number1025001201-1100
Vendor material number3758124
Basic information
Package measurements (L x W x H)166 x 147 x 45 mm
Package volume1.098 l
Package weight0.79 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC40141607
BrandBROEN FULL FLOW
VendorBROEN A/S, BUILDING
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)7.5524
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameBROEN ApS
Postal addressSkovvej 30, DK-5610 Assens, Denmark
