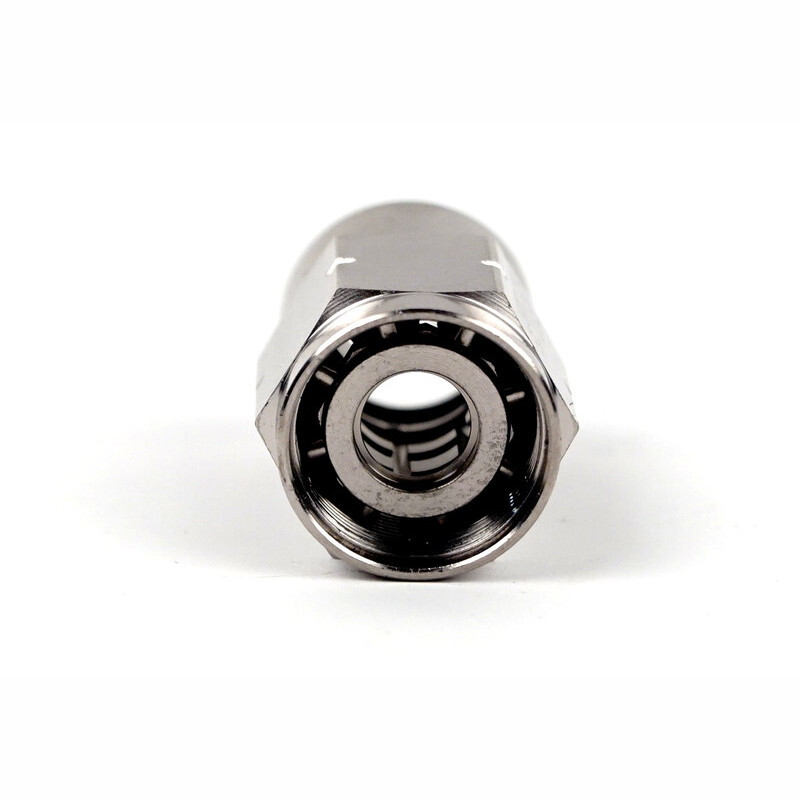

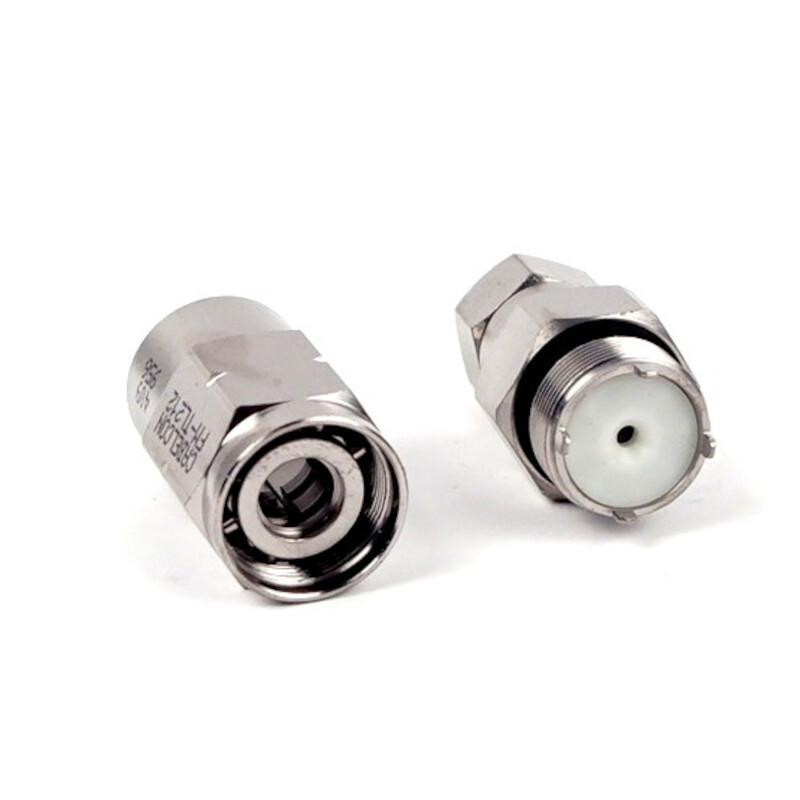

CONNECTOR CONNECTOR TELLU7 F-MALE
Product code
7526542
Cabelcon True Lock connectors are designed for the most critical parts of trunk and distribution networks, where the highest demands are placed on connectors. These hardline connectors combine high performance and reliability.
True Lock connectors are designed with the installer in mind. For example, the tightening torque is lower compared to similar products. Thanks to the rounded tip of the connector pin, it slides perfectly into place every time. The True Lock locking mechanism prevents the cable from twisting during connector tightening. Careful finishing makes installation more comfortable for the installer in difficult situations.
Cabelcon's unique Nitin-6™ coating provides protection against chemicals, oil, salt, and other contaminants and does not cause symptoms in nickel-allergic individuals.
This product description is an automated translation of the original Finnish description.
True Lock connectors are designed with the installer in mind. For example, the tightening torque is lower compared to similar products. Thanks to the rounded tip of the connector pin, it slides perfectly into place every time. The True Lock locking mechanism prevents the cable from twisting during connector tightening. Careful finishing makes installation more comfortable for the installer in difficult situations.
Cabelcon's unique Nitin-6™ coating provides protection against chemicals, oil, salt, and other contaminants and does not cause symptoms in nickel-allergic individuals.
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Coax coupler (EC001135)
Construction typeStraight
ModelPlug/plug
Type of connectorF
Impedance75 Ohm
Type of fasteningOther
Product codes
SAPCKX765
STK7526542
PLC7526542
GTIN/EAN5707957094889
Manufacturer part numberFM-TL212
Vendor material numberFM-TL212
Basic information
Package measurements (L x W x H)85 x 60 x 45 mm
Package volume0.23 l
Package weight0.073 kg
Base uniteach
Package units1 / 25
Package contents–
UNSPSC39121414
BrandCABELCON
VendorFINNSAT OY
