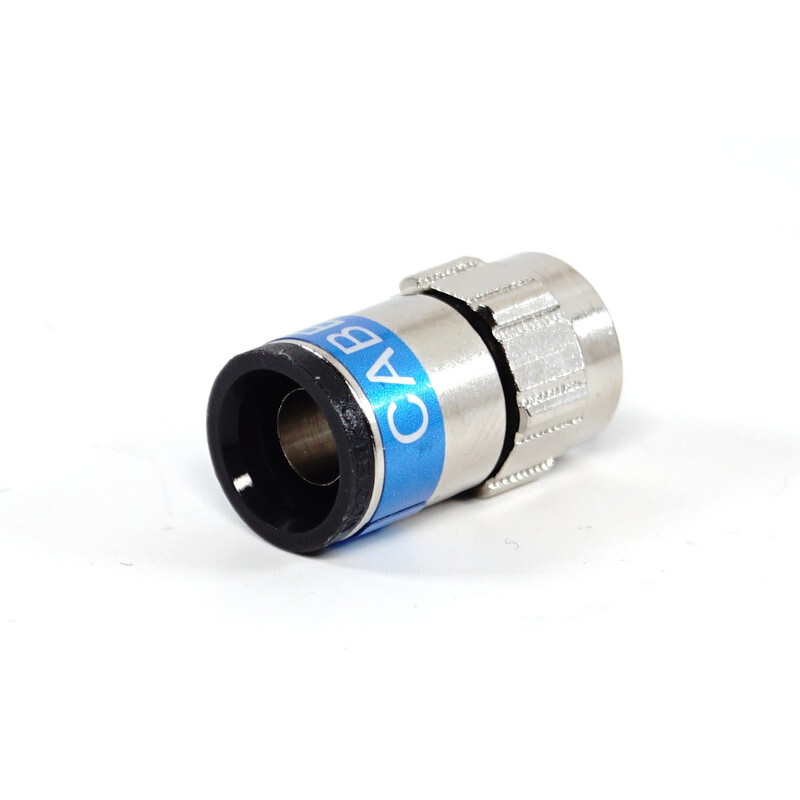

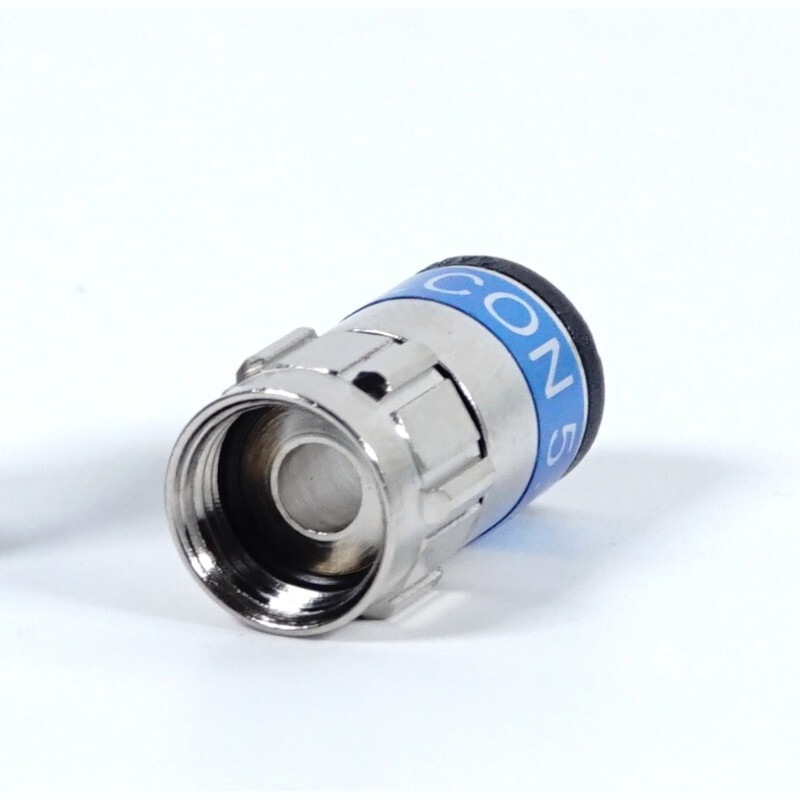

CONNECTOR RG6 T2127 TELLU13 SELF INSTALL

Product code
7526519
Cabelcon's Self-Install™ connectors have been developed to replace low-quality threaded connectors. Installation is easier, simpler, and more precise than ever before. Strip the cable and push the connector into place—that’s all it takes. The Cabelcon Self-Install™ connector automatically seats itself without requiring a separate crimping tool. Once installed, the connector cannot be removed, and its pull strength exceeds that of the cable itself.<br /><br />Cabelcon's Self-Install™ connectors are also ideal for professional installers. Leading national antenna contractors have adopted them. The connector’s electrical and mechanical properties stand up to comparison, and connections are made quickly.<br />Self-Install™ connectors are suitable for antenna, cable, and satellite installations. Cabelcon is Europe’s largest manufacturer of coaxial connectors for CATV networks.<br /><br /><bNew features of the Cabelcon TrueDrop™ Self Install connector</b><br /><ul><liLarger conical contact surface ensures better alignment and RF sealing</li> <liNew O-ring seal is not damaged during installation</li> <liImproved thread grip</li> <liCable inner dielectric stop prevents dielectric intrusion</li> <liNut grooving provides better finger grip, easier tightening, and faster installation</li> </ul><br /><bCOMPATIBLE CABLES</b><br /><ul><liRG6T</li> <liT2127</li> <liTELLU13</li> <liAL 112</li> <liAL 113</li> <liAL 102</li> </ul><br /><bSTRIPPING TOOLS</b><br /><ul><li7550123 FKT-CC</li> <li7550100 FKTJ-CC</li> </ul> This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Coax connector (EC001131)
Type of connectorF
Elbow plugno
Contact typeMale
Connection typeOther
Cable typeRG 6
Impedance75 Ohm
Insulated mountingyes

Product codes

SAPCKX782
STK7526519
PLC7526519
GTIN/EAN5707957148377
Manufacturer part numberF-6-TD-SI5.1
Vendor material numberF-6-TD-SI5.1

Basic information

Package measurements (L x W x H)20 x 10 x 10 mm
Package volume0.002 l
Package weight0.005 kg
Base uniteach
Package units100 / 1000
Package contents
UNSPSC39121414
BrandCABELCON
VendorFINNSAT OY
