SAUNA LUMINAIRE LINEAR LED SAUNA LINEAR 2700K 4M + SPOT
Product code
4197252
On the sauna linear, you get even lighting along the backrest and the upper bench front edge.

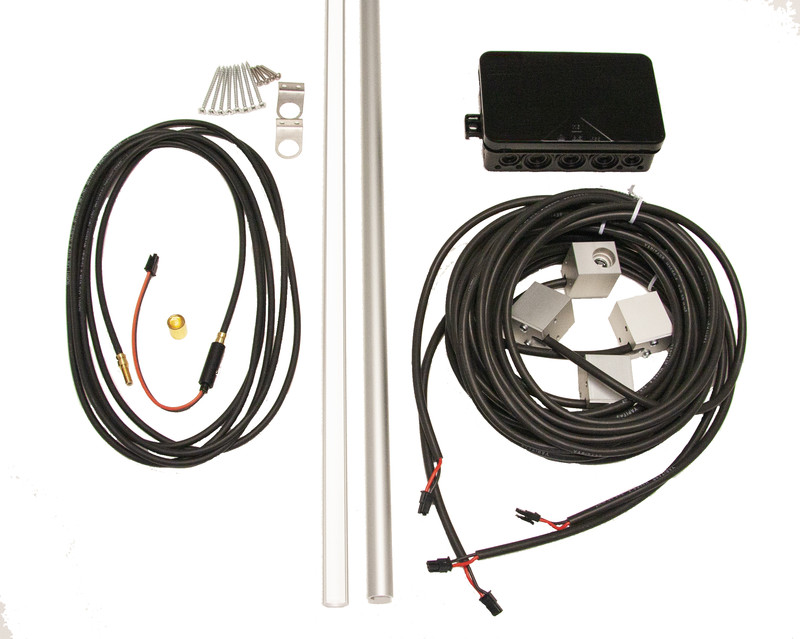

The set consists of the following products: 2 pieces of 2-meter linear rods, 1 piece of LED heater fiber (glass) 5.0 m with lens, 4 pieces of LED light sources at the ends of the linear rods, cable length 2.5 m. A dimmable power supply suitable for sauna use. The power supply enclosure of the set has an IP55 protection class, and the LED light sources are IP55.
The power supply can be installed inside the sauna, under the bench, with a maximum installation height of 80 cm from the floor. The light sources have 1 W LEDs. The maximum installation height for the linear rod and LED light sources is 1.5 m from the floor. Color temperature 2700K.
The linear rod is illuminated from both ends and can be shortened on-site, for example with a saw. The rod is not omnidirectional. During installation, directing the rod allows the light to be guided in the desired direction. The entire unit is easy to install even in a pre-built sauna. The power supply and LED light sources are suitable for surface mounting. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter1
Lamp power per meter1 W
Voltage typeAC
Type of power supplyMains power supply
Beam angle120 °
Type of control gearLED operating device current-controlled
Exchangeable control gearyes
Energy efficiency class of the light source according to EU regulation 2019/2015F
Rated lifetime L70/B50 at 25 °C50000 h
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)70000 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)10 %
Degree of protection (IP)IP55
Product codes
SAPDMC554
STK4197252
PLC4197252
GTIN/EAN6430080020744
Manufacturer part number1816035
Vendor material number4197252
Basic information
Package measurements (L x W x H)2070 x 90 x 90 mm
Package volume16.767 l
Package weight1.9 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandCARIITTI
VendorCARIITTI OY
The country of origin stated by the supplierFinland
Documents (4)
Brochures & documents
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)24.7
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
