SAUNA LUMINAIRE LINEAR LED SAUNA LINEAR 2700K 6M + SPOT

Product code
4197253

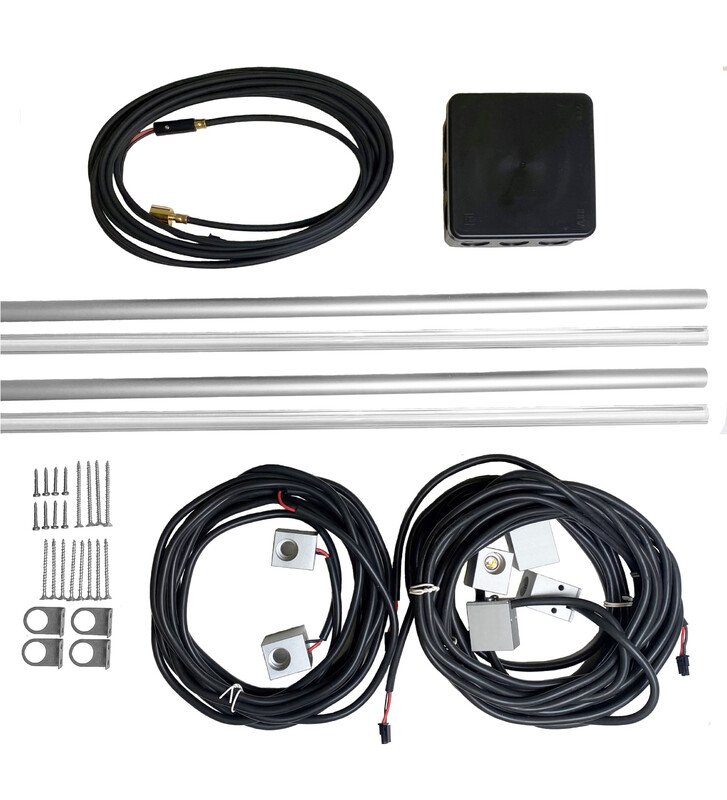

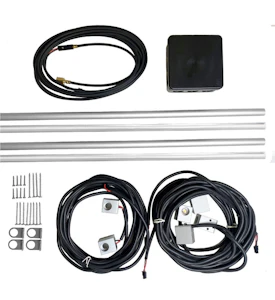

On the linear bar, you get even lighting along the backrest and the front edge of the upper bench. This set includes two 3-meter-long light bars, and the set also includes an LED heater fiber for the heater lighting. The set consists of the following products: - 4 pieces of 1.5 m linear bars - 1 piece of LED heater fiber glass 5.0 m (2700K) with lens - 6 pieces of LED light sources (2700K), four at the ends of the bars and two between the bars. Cable length 2.5 m. - A dimmable power supply suitable for sauna, IP55. - Ta 125° The power supply of the set is IP55 protected and the LED light sources are IP55. The power supply can be installed inside the sauna, under the bench, with a maximum installation height of 80 cm from the floor, see installation instructions. The light sources contain 1 W LEDs. The maximum installation height for the linear bar and LED light sources (2700K) is 1.5 m from the floor. The linear bar is lit from both ends and can be shortened on-site, for example with a saw. The bar is not omnidirectional. During installation, directing the bar allows the light to be guided in the desired direction. The entire unit is easy to install even in a pre-built sauna. The power supply and LED light sources are also suitable for surface mounting. Additional LED light sources cannot be added to this set. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter1
Lamp power per meter1 W
Voltage typeAC
Beam angle120 °
Type of control gearLED operating device current-controlled
Exchangeable control gearyes
Energy efficiency class of the light source according to EU regulation 2019/2015F
Rated lifetime L70/B50 at 25 °C50000 h
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)10 %
Degree of protection (IP)IP55
Degree of protection (NEMA)4
Protection class according to IEC 61140II

Product codes

SAPDMC553
STK4197253
PLC4197253
GTIN/EAN6430080020751
Manufacturer part number1816036
Vendor material number4197253

Basic information

Package measurements (L x W x H)1530 x 120 x 120 mm
Package volume22.032 l
Package weight4.26 kg
Base uniteach
Package units1
Package contents
UNSPSC39111544
BrandCARIITTI
VendorCARIITTI OY
The country of origin stated by the supplierFinland

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)55.38
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameCariitti Oy
Postal addressNiittyrinne 2B, 02270 Espoo, FINLAND
