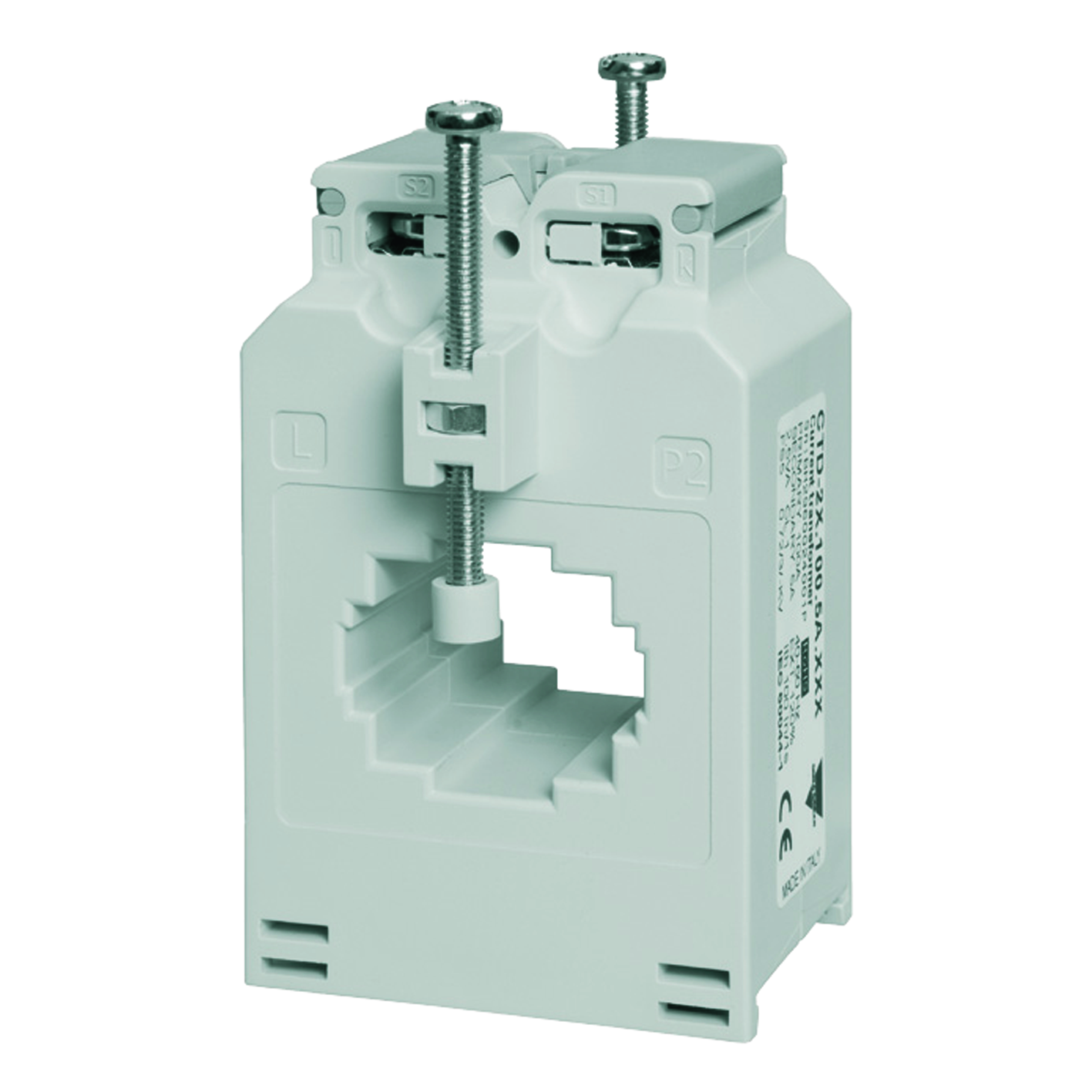

CURRENT TRANSFORMER CG CTD2X755AXXX
Product code
6706190
Current transformer for cable or busbar. Primary current 75A and secondary current 5A. Maximum cable diameter 24 mm. Horizontal busbar max. 32x5; 30x10; 25x20 mm, vertical busbar max. 25x12 mm. Flame rating UL 94 V-0. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Current transformer (EC002048)
ModelThrough-feed current converter
Rated primary current75 A
Rated secondary current5 A
Rated secondary apparent power1.75 VA
Overcurrent limiting factorFS 5
With contact protectionno
Opening diameter24 mm
Snap mountingyes
With copper railno
Number of primary inputs1
Product codes
SAPCFJ182
STK6706190
PLC6706190
GTIN/EAN8030956040302
Manufacturer part numberCTD2X755AXXX
Vendor material numberCTD2X755AXXX
Basic information
Package measurements (L x W x H)125 x 100 x 75 mm
Package volume0.938 l
Package weight0.32 kg
Base uniteach
Package units1 / 3
Package contents–
UNSPSC39121003
BrandCARLO GAVAZZI
VendorCARLO GAVAZZI OY AB
