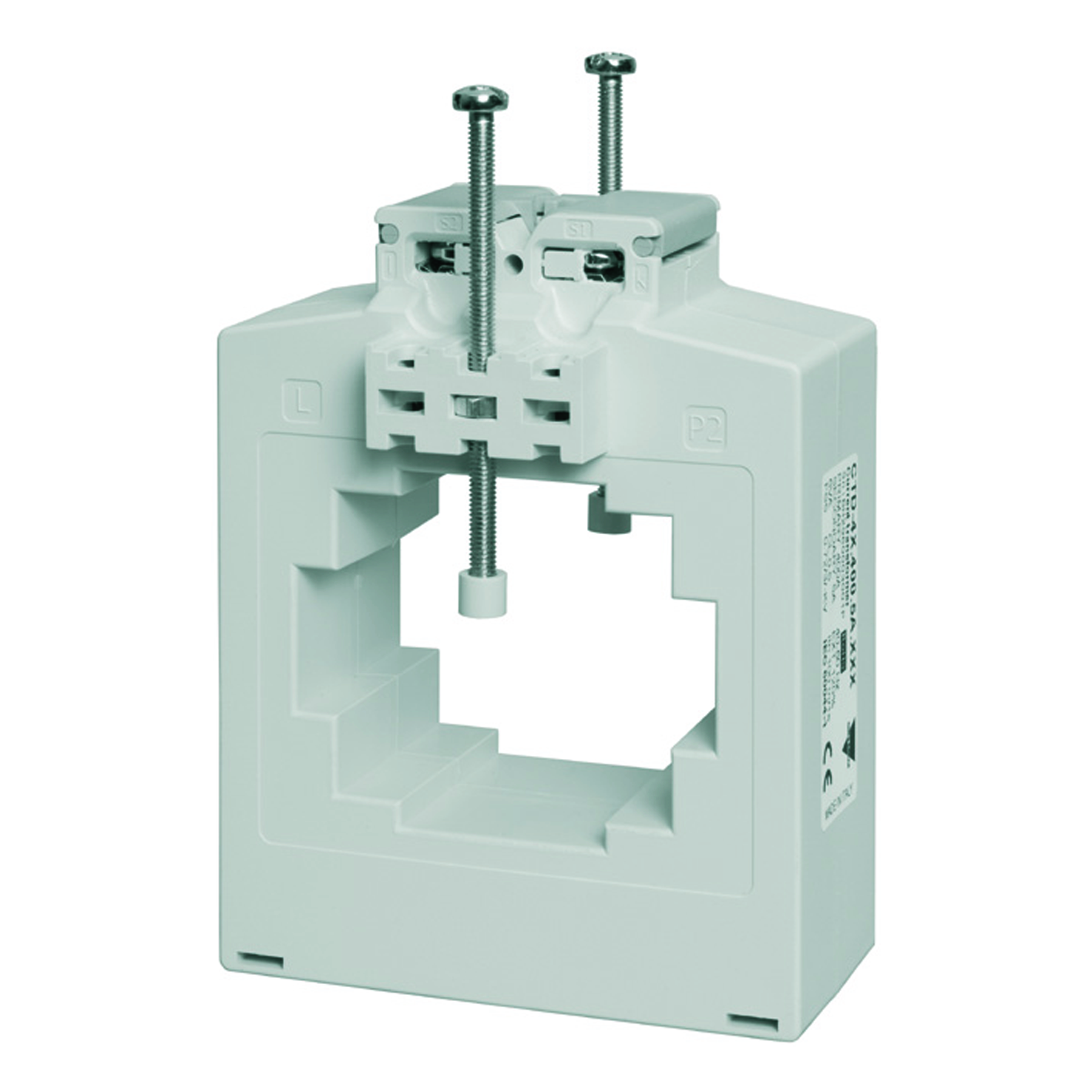

CURRENT TRANSFORMER CG CTD4X12005AXXX
Product code
6706097
Current transformer for cable or busbar. Primary current 1200A and secondary current 5A. Maximum cable diameter 51 mm. Horizontal busbar max. 64x20; 51x43, vertical busbar max. 51x31 mm. Flame rating UL 94 V-0. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Current transformer (EC002048)
ModelThrough-feed current converter
Rated primary current1200 A
Rated secondary current5 A
Rated secondary apparent power20 VA
Overcurrent limiting factorFS 5
With contact protectionno
Opening diameter51 mm
Snap mountingyes
With copper railno
Number of primary inputs1
Product codes
SAPCFJ149
STK6706097
PLC6706097
GTIN/EAN8030956040616
Manufacturer part numberCTD4X12005AXXX
Vendor material numberCTD4X12005AXXX
Basic information
Package measurements (L x W x H)160 x 100 x 100 mm
Package volume1.6 l
Package weight0.595 kg
Base uniteach
Package units1 / 3
Package contents–
UNSPSC39121003
BrandCARLO GAVAZZI
VendorCARLO GAVAZZI OY AB
