COOL-FIT 2.0

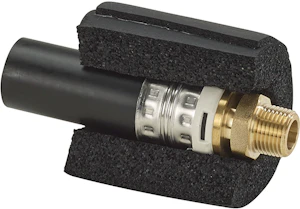

ADAPTER C-F 2.0 32x3/4 MT PE/MS PN16
Product code
3017084
Adapter coupling that allows easy connection of the COOL-FIT system to other systems with UK, SK, or nut connection. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polyethylene (PE)
Material quality connection 1PE-100
Material connection 2Polyethylene (PE)
Material quality connection 2PE-100
ShapeStraight
Reducingno
Nominal diameter connection 1DN 25
Outer pipe diameter connection 132 mm
Connection 1Spigot/tube end
Nominal diameter connection 23/4 inch (20)
Connection 2External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
Material sealingEthylene-propylene diene monomer rubber (EPDM)
Standard Dimension Ratio (SDR)11
With sealing rings/gasketsyes
Product codes
SAPCKW075
HPAC3017084
PLC3017084
GTIN/EAN7612988817810
Manufacturer part number738954518
Vendor material number3017084
Basic information
Package measurements (L x W x H)135 x 80 x 80 mm
Package volume0.864 l
Package weight0.24 kg
Base uniteach
Package units1 / 20 / 400
Package contents–
UNSPSC40141720
BrandCOOL-FIT 2.0
VendorGEORG FISCHER AB SE
Documents (5)
Brochures & documents
Links
Environment and safety
Manufacturer
NameGeorg Fischer Ab
Postal addressIlmalantori 4, 00240 Helsinki
