CONNECTOR CAT6A RJ45 FTP F KEYSTONE TOOLLESS

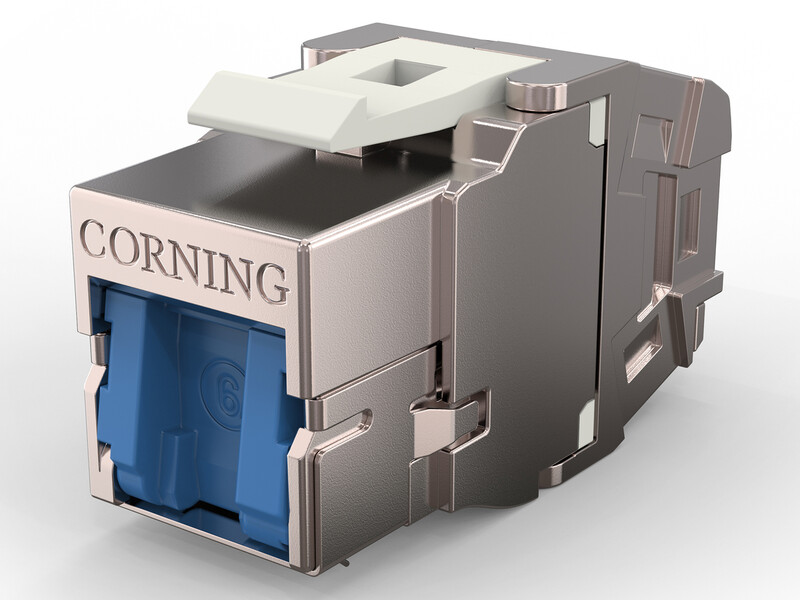

Corning's protected metal-bodied RJ45 Keystone CAT6A FTP tool-less connector with dust protection for CAT6 cables. The connector does not require special tools, reducing installation time.

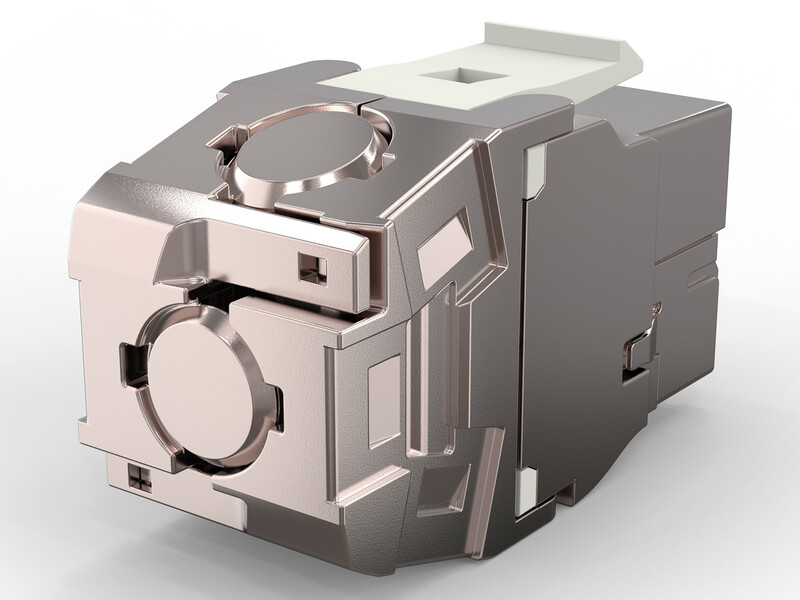

The connector features three cable entry positions (70°, 180° straight, and 250°), providing additional space and flexibility while ensuring the cable's minimum bend radius is not exceeded. The connector also includes a self-closing dust cover.

Tested and certified for Power over Ethernet applications (PoE/PoE+/4PPoE) in accordance with IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt standards up to 90W.

The connector complies with Traficom's M65D internal network requirements.

Connectors are packaged in 24-piece environmentally friendly cardboard packaging.

General Information

• Dust protection: Yes
• Category: CAT6A
• Application: 10GBase-T
• Bandwidth: 500MHz

Environmental Conditions

• Environmental compatibility: Recyclable, contains no heavy metals
• Halogen-free??????????????????
• Installation temperature range: -40°C to 70°C
• Operating temperature range: -10°C to 60°C

Construction

• Connector type: RJ45 - 8/8
• Material: Die-cast metal
• Enclosure color: Silver
• Conductor + insulation diameter max. 1.6mm
• Cable diameter: 9mm
• Conductor: AWG 22-26 solid or AWG 26-27 stranded

Mechanical Specifications

• RJ45 connector (PoE) durability: ? 750 mating cycles under load (52V, 860mA, 90W)
• RJ45 mating cycles: ? 750 EN 186000-1, test 4.5.32
• Gold-plated contact surface
• Reusable multiple times
• Solid wire diameter: 1mm - 1.6mm
• Dimensions: Height 19.6mm, Width 14.5mm, Depth 37.0mm

This product description is an automated translation of the original Finnish description.
