DISTRIBUTION BOX EVOLV BPEO S1.5 1XD18 2XS18 13XS9.5

Corning's Evolv BPEO splice enclosures are suitable for a variety of applications. Enclosures are available in different sizes and can be used in both above-ground (poles, facades) and underground (manholes) installations. They are particularly used in Fiber to the Home (FTTH) installations but also in all types of outdoor fiber cable installations.

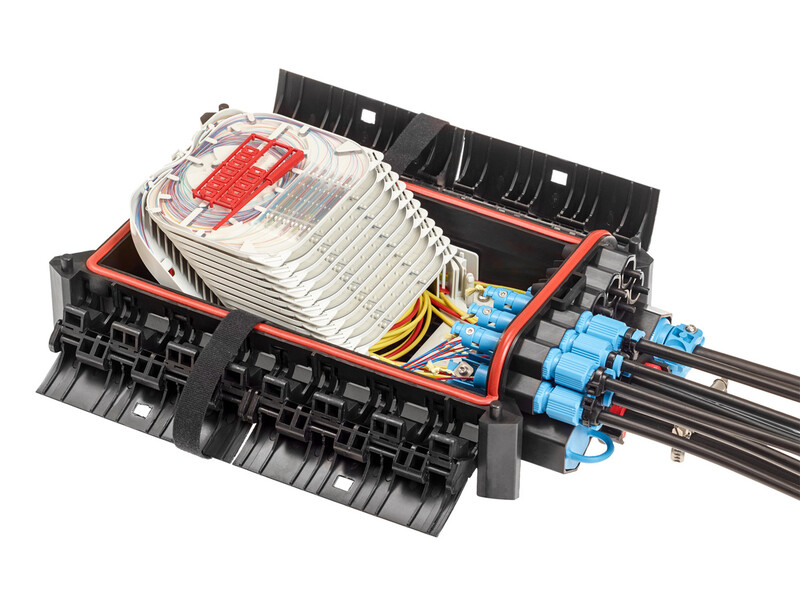

The BPEO-S1.5-FDP-BRANCH is a fiber optic splice enclosure that functions as a fiber distribution point. It is specifically designed for outdoor use and offers the following features:

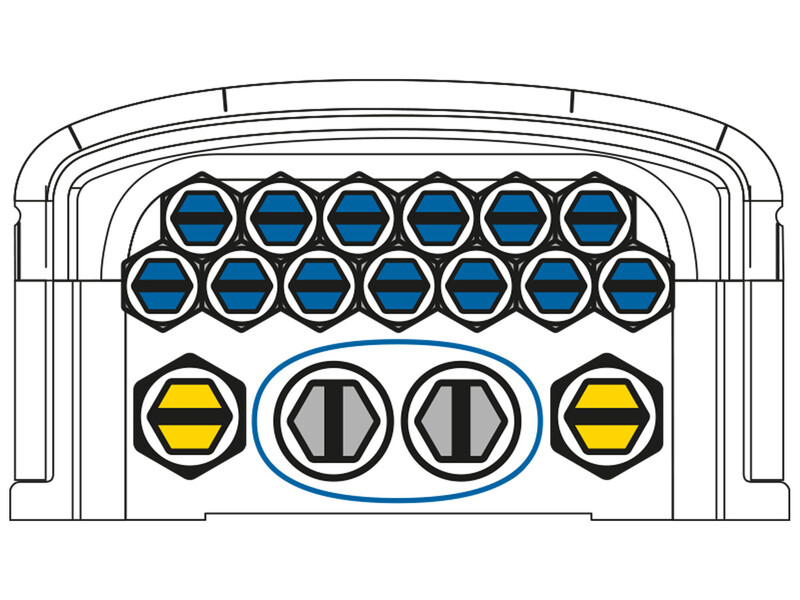

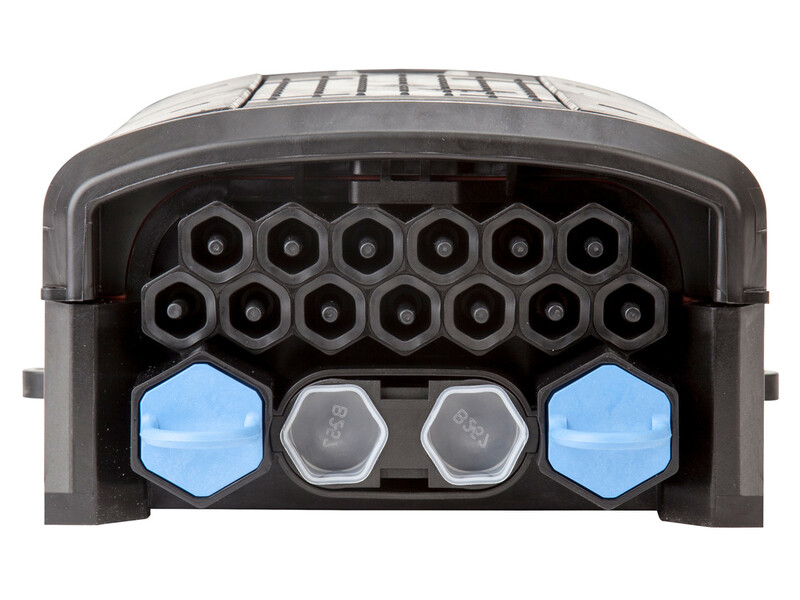

• 13 ports for cables 3.5-9.5 mm
• Dual port for cables 6-18 mm
• 2 separate ports for cables 6-18 mm
• Up to 12 splice trays can be installed in the enclosure (up to 288 connections)
• Sealing: IP68 rating, withstands 5 meters of water pressure for 7 days
• Operating environment: Suitable for above-ground and underground installations
• Impact resistance: IK10
• Operating temperature: -40°C to +65°C
• Dimensions: Height 382 mm, width 204 mm, depth 120 mm

This product description is an automated translation of the original Finnish description.
