DISTRIBUTION BOX EVOLV BPEO S2 1XD18 16XS12 IP68

Corning's Evolv BPEO splice enclosures are suitable for a variety of applications. Enclosures are available in different sizes and can be used in both above-ground (poles, facades) and underground (manholes) installations. They are particularly used in Fiber to the Home (FTTH) installations but also in all types of outdoor fiber cable installations.

The BPEO-S2-BDP is a high-capacity splice enclosure designed for use in the backbone and feeder sections of fiber networks.

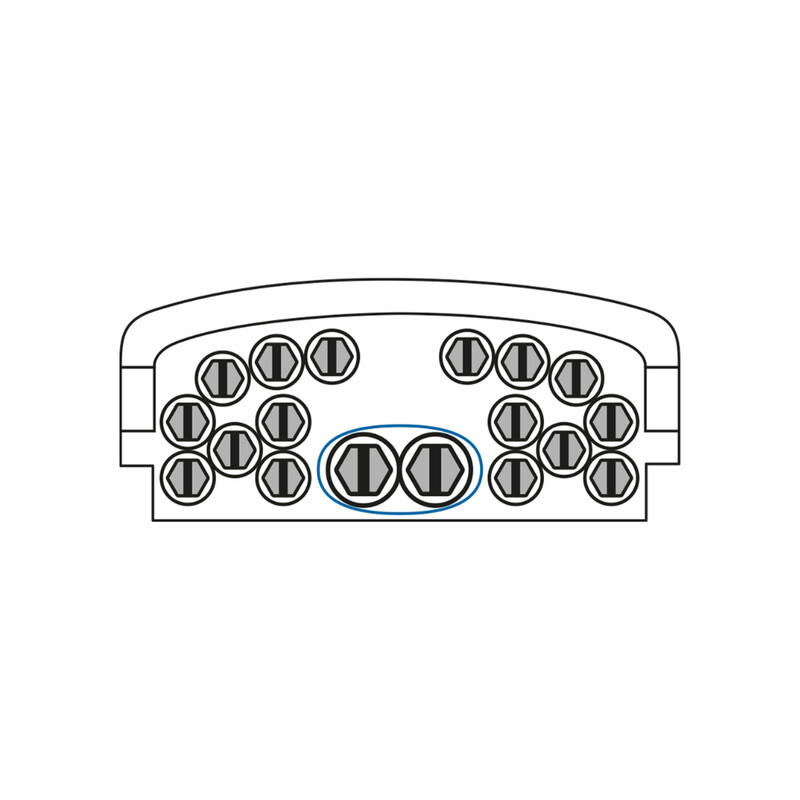

• 16 ports for cables 4–12 mm
• Double port for cables 6–18 mm
• Up to 30 splice cassettes (5 mm) can be installed in the enclosure
• Waterproof: IP68 rating, withstands 5 meters of water pressure for 7 days
• Operating environment: Suitable for above-ground and underground installations
• Impact resistance: IK10
• Operating temperature: -40°C to +65°C
• Dimensions: Height 520 mm, width 341 mm, depth 149 mm

This product description is an automated translation of the original Finnish description.
