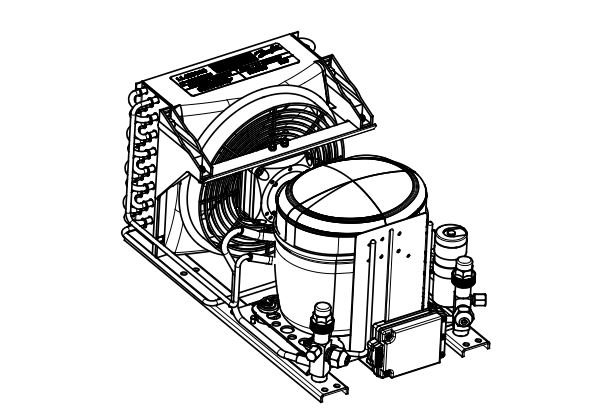

COMPRESSOR UNIT R134A OP-MCGC007FRA01G 114X0217
Product code
K1151040
The Optyma™ A01 version is suitable for small cooling capacity applications and features KP pressure switch mounts and copper tubes. An extremely compact single-fan model with suction and liquid line shut-off valves, a receiver, and a small electrical enclosure. The A01 version is suitable for systems equipped with capillary tubes or expansion valves. Refrigerants: R134a; R513A; R1234yf, Application segment: Medium back pressure, Number of phases (compressor): 1 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
ApplicationRefrigeration Low Temp
Type of refrigerantR-134a
Connection voltage1 x 230 V
Product codes
SAPADX817
PLCK1151040
Manufacturer part number114X0217
Vendor material number114X0217
Basic information
Package measurements (L x W x H)500 x 385 x 250 mm
Package volume48.125 l
Package weight18.252 kg
Base uniteach
Package units1
Package contents–
UNSPSC40151607
BrandDANFOSS
VendorDANFOSS OY AB
The country of origin stated by the supplierFinland
Documents (6)
Certificates
