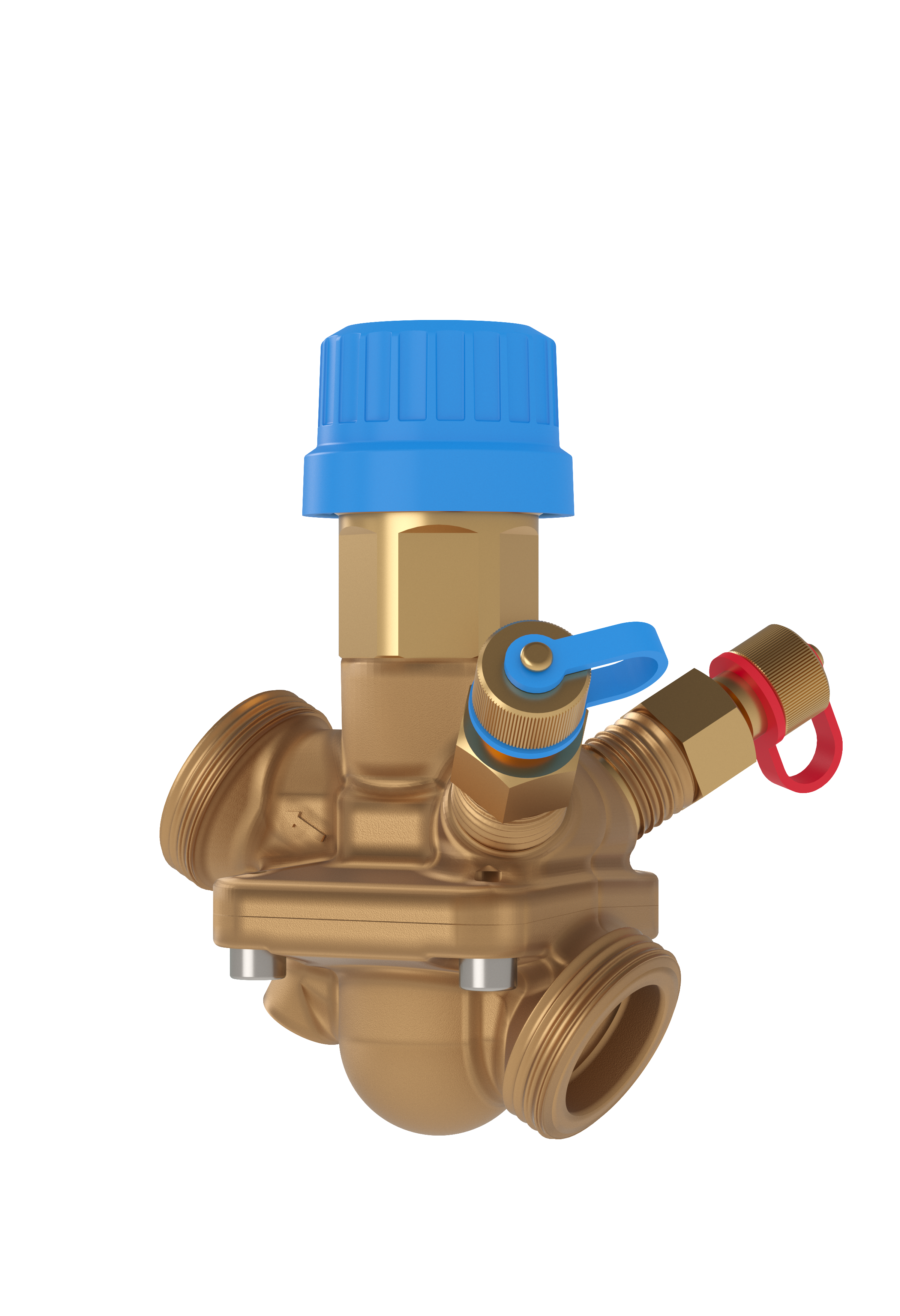

CONTROL VALVE DANFOSS AB-QM25 Q1.70 003Z1214

Name: CONTROL VALVE DANFOSS AB-QM25 Q1.70 003Z1214
Brand: DANFOSS
SKU: ARH026

Product code

4015093

Control valve for cooling and heating systems This product description is an automated translation of the original Finnish description.

Product details

Product class (ETIM)Pressure-compensated control valve (EC011312)

Material qualityDezincification resistant brass (DZR)

Nominal diameterDN 25

Outer pipe diameter33.7 mm

ConnectionsExternal thread cylindrical BSPP-G (ISO 228-1)

Article compression classPN 16

ModelMembrane

Volume flow0.34 - 1.7 m³/h

Volume flow presetWith valve guard

Min. pressure difference20 kPa

Max. pressure difference25 kPa

Connection for control elementM30 x 1.5

Valve characteristicLinear

Stroke length4.5 mm

With measuring nipplesyes

With fill- and drain valveno

SAPARH026

HPAC4015093

PLC4015093

GTIN/EAN5710104029948

Manufacturer part number003Z1214

Vendor material number003Z1214

Package measurements (L x W x H)170 x 135 x 103 mm

Package volume2.364 l

Package weight1.36 kg

Base uniteach

Package units1

Package contents–

UNSPSC32000000

BrandDANFOSS

VendorDANFOSS OY AB
