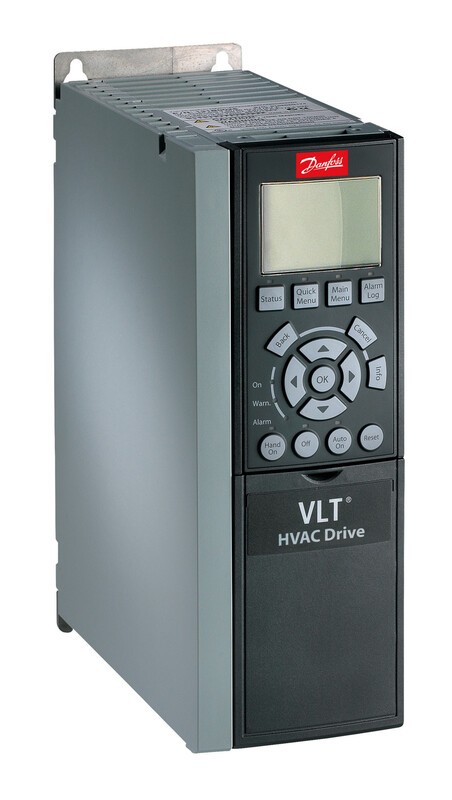

FREQUENCY CONVERTER IP20 VLT FC-102P3K0 / 3KW
Product code
3882543
Frame A2
IP20
Also available as 3882590 IP21 Installation Kit, Frame A2
EMC level C2 150 m (EMC C1 level 50 m)
Side-by-side installation
Maximum ambient temperature +50°C
Available as factory order:
STO
ATEX thermistor output
This product description is an automated translation of the original Finnish description.
IP20
Also available as 3882590 IP21 Installation Kit, Frame A2
EMC level C2 150 m (EMC C1 level 50 m)
Side-by-side installation
Maximum ambient temperature +50°C
Available as factory order:
STO
ATEX thermistor output
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Frequency converter =< 1 kV (EC001857)
Mains voltage380 - 480 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency590 Hz
Max. output voltage480 V
Nominal output current I2N7.2 A
Max. output at quadratic load at rated output voltage3 kW
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs2
Number of digital inputs6
With control elementyes
Application in industrial area permittedyes
Application in domestic- and commercial area permittedyes
Product codes
SAPAET876
STK3882543
PLC3882543
GTIN/EAN5702427226777
Manufacturer part number131B4219
Vendor material number131B4219
Basic information
Package measurements (L x W x H)900 x 250 x 300 mm
Package volume67.5 l
Package weight4.9 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandDANFOSS
VendorDANFOSS OY AB
