FREQUENCY CONVERTER IP20 VLT FC-202PK37 / 0,37KW
Product code
3889900

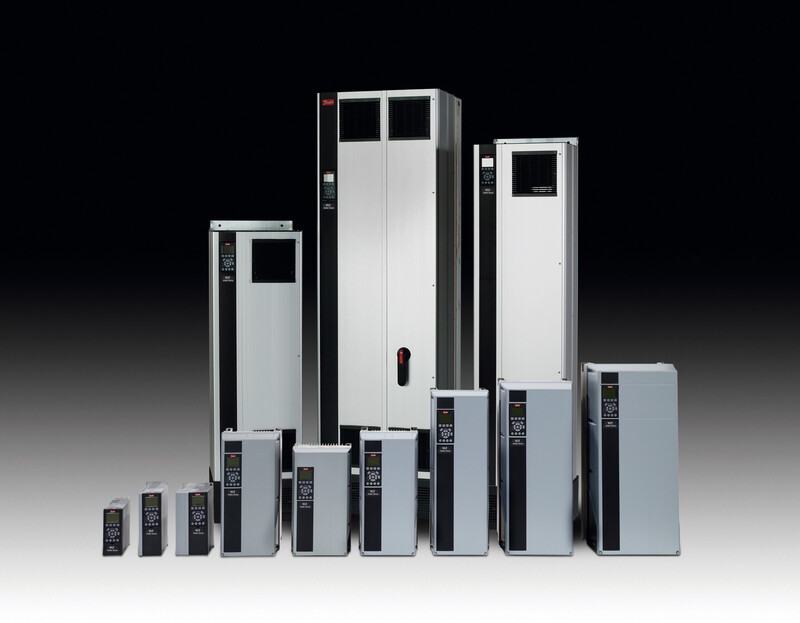

VLT® AQUA Drive FC 200
The Danfoss VLT AQUA frequency converter is specifically designed for water and wastewater applications. The VLT AQUA frequency converter offers a wide range of efficient standard and additional functions and is the most cost-effective solution for water and wastewater applications. This product description is an automated translation of the original Finnish description.
The Danfoss VLT AQUA frequency converter is specifically designed for water and wastewater applications. The VLT AQUA frequency converter offers a wide range of efficient standard and additional functions and is the most cost-effective solution for water and wastewater applications. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Frequency converter =< 1 kV (EC001857)
Mains voltage380-480 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency590 Hz
Max. output voltage480 V
Nominal output current I2N1.3 A
Max. output at quadratic load at rated output voltage0.37 kW
Max. output at linear load at rated output voltage0.37 kW
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs2
Number of digital inputs6
With control elementyes
Application in industrial area permittedyes
Product codes
SAPAET890
STK3889900
PLC3889900
GTIN/EAN5702427378513
Manufacturer part number131B8872
Vendor material number131B8872
Basic information
Package measurements (L x W x H)900 x 250 x 300 mm
Package volume67.5 l
Package weight3.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandDANFOSS
VendorDANFOSS OY AB
